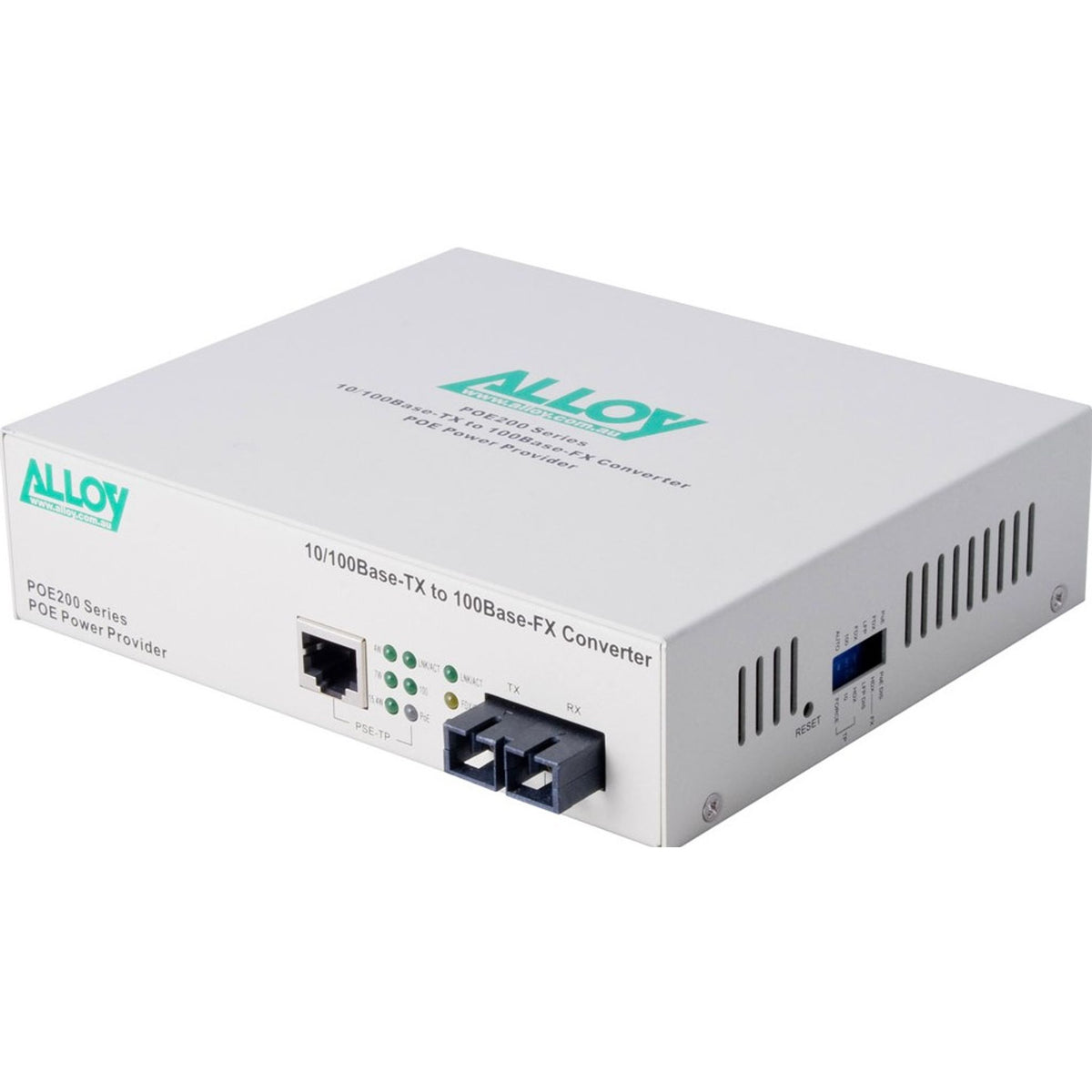

Alloy POE200SC Fast Ethernet PoE Media Converter
$340.94
Skip to product information
Alloy POE200SC Fast Ethernet PoE Media Converter
$340.94
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 3-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Convert your network from copper to multimode fibre to run gear up to 2 kilometres away. It uses an SC fibre port and provides PoE power for your IP cameras.
Key features
- Powers PoE PD devices such as IP phones and IP cameras over UTP data cable
- Converts Fast Ethernet 10/100Base-TX over UTP/STP copper cable to SC terminated 100Base-FX over multimode fibre cable
- Provides PD signature sensing, power monitoring and current protection
- Includes Far-End-Fault and Forced mode LFP for link fault monitoring and auto link shutdown
Specifications
| General | |
|---|---|
| Brand | Alloy |
| SKU | POE200SC |
| Warranty | 3-year manufacturer warranty |
| Performance | |
| PoE standard | IEEE 802.3af compliant PSE |
| Copper port speed | 10/100Mbps auto-negotiation |
| Fibre link range | up to 2 kilometres (multimode) |
| Maximum fibre link range | 40kms |
| Connectivity | |
| Copper port | 10/100Mbps PoE RJ-45 |
| Fibre port | SC terminated multimode |
| Supported fibre connector models | LC, SC and ST |
| Physical specs | |
| Width | 214 mm |
| Height | 90 mm |
| Length | 258 mm |
| Weight | 1.24 kg |
Specifications come from the manufacturer and can change between production runs.
