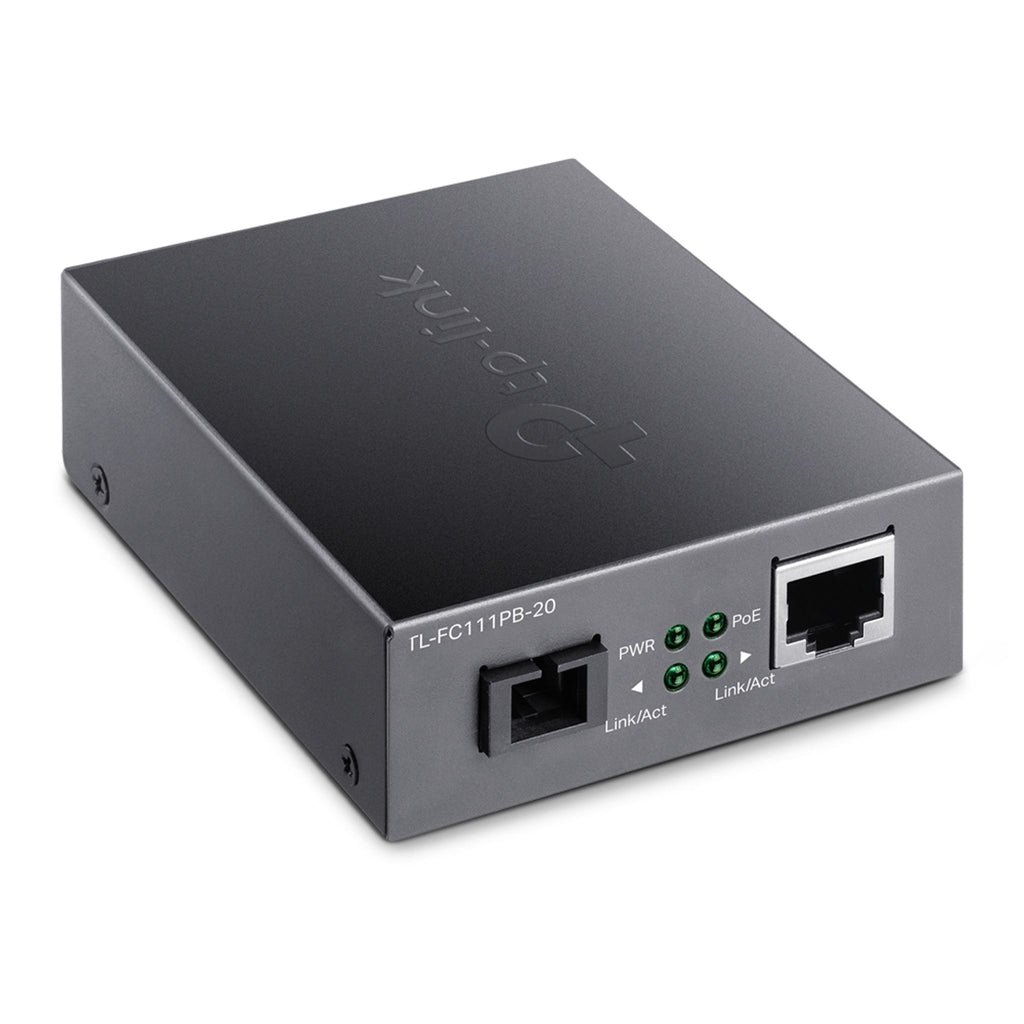

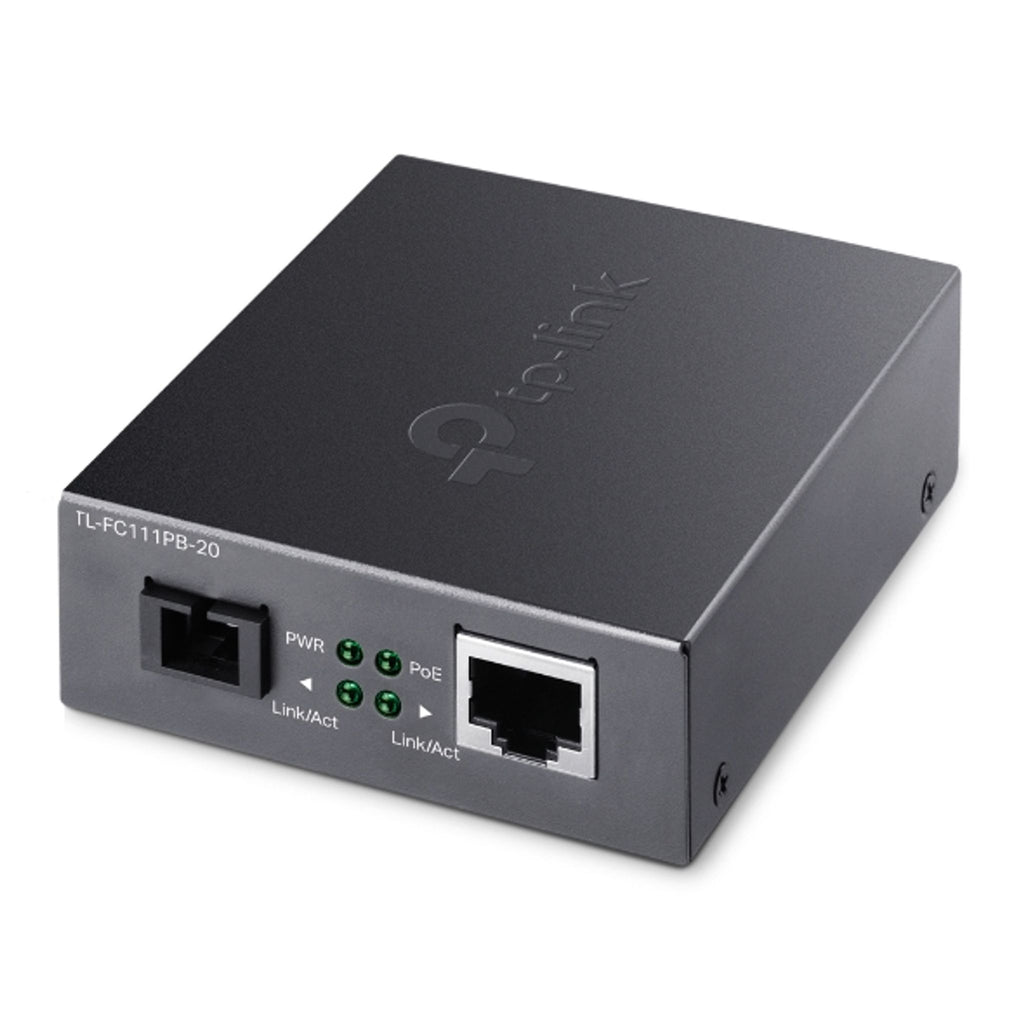

TP-Link FC111PB-20 10/100Mbps WDM PoE Media Converter
$41.24
Skip to product information
TP-Link FC111PB-20 10/100Mbps WDM PoE Media Converter
$41.24
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 3-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Get a camera working in the shed or out the back by converting fiber to copper. It uses WDM technology to send data over a single fiber strand up to 20km.
Key features
- Converts data between fiber optical signals and copper electric signals
- Extends fiber distance up to 20 km
- Simplifies remote camera deployment with 802.3af PoE output
- Transmits and receives data over one single fiber strand using WDM technology
- Auto-negotiates Half-Duplex/Full-Duplex transfer mode
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | FC111PB-20 |
| Warranty | 3-year manufacturer warranty |
| Performance | |
| Network standards | IEEE802.3, IEEE802.3i, IEEE802.3u |
| Fiber type | 9/125 μm single-mode fiber |
| Wave length | 1310 nm TX, 1550 nm RX |
| Network media | 100BASE-Tx 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Connectivity | |
| PoE port | 1× 10/100 Mbps RJ45 |
| Fiber port | 1× 100 Mbps SC |
| Power | |

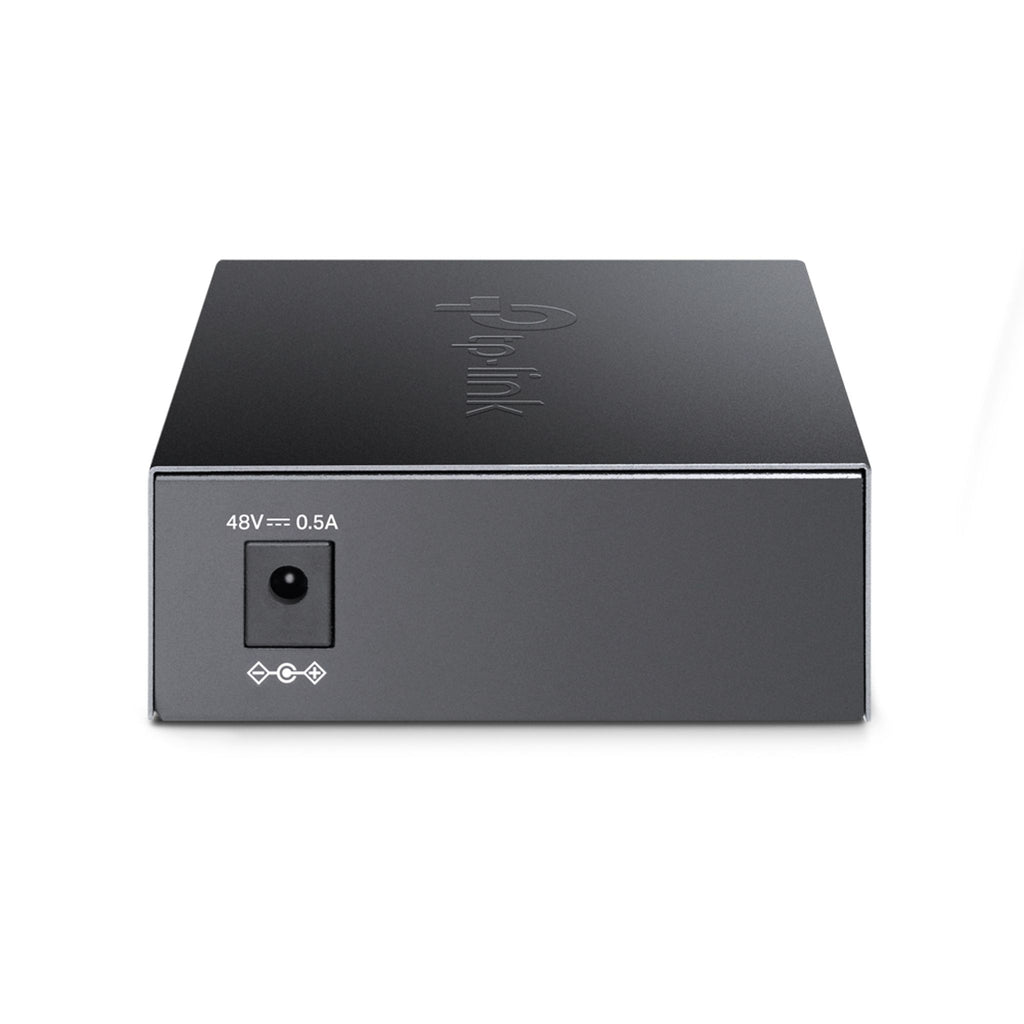

| Power supply | 48 V/0.5 A |
| Environment | |
| Operating temperature | 0, 50 °C |
| Storage temperature | -40, 70 °C |
| Operating humidity | 10, 90% RH non-condensing |
| Storage humidity | 5, 90% RH non-condensing |
| Hardware | |

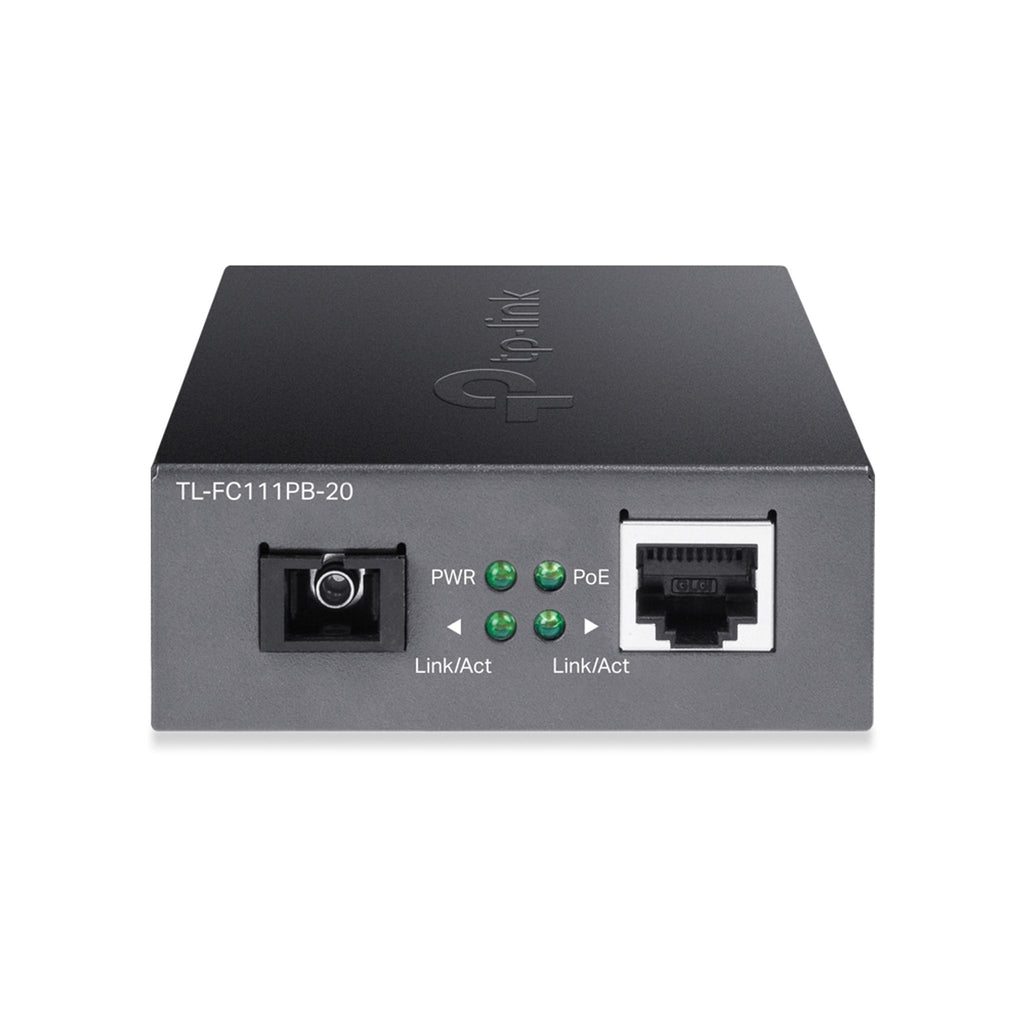

| LED indicators | PWR, Link/Act, PoE |
| Dimensions | 94.5×73.0×27.0 mm |
Specifications come from the manufacturer and can change between production runs.
