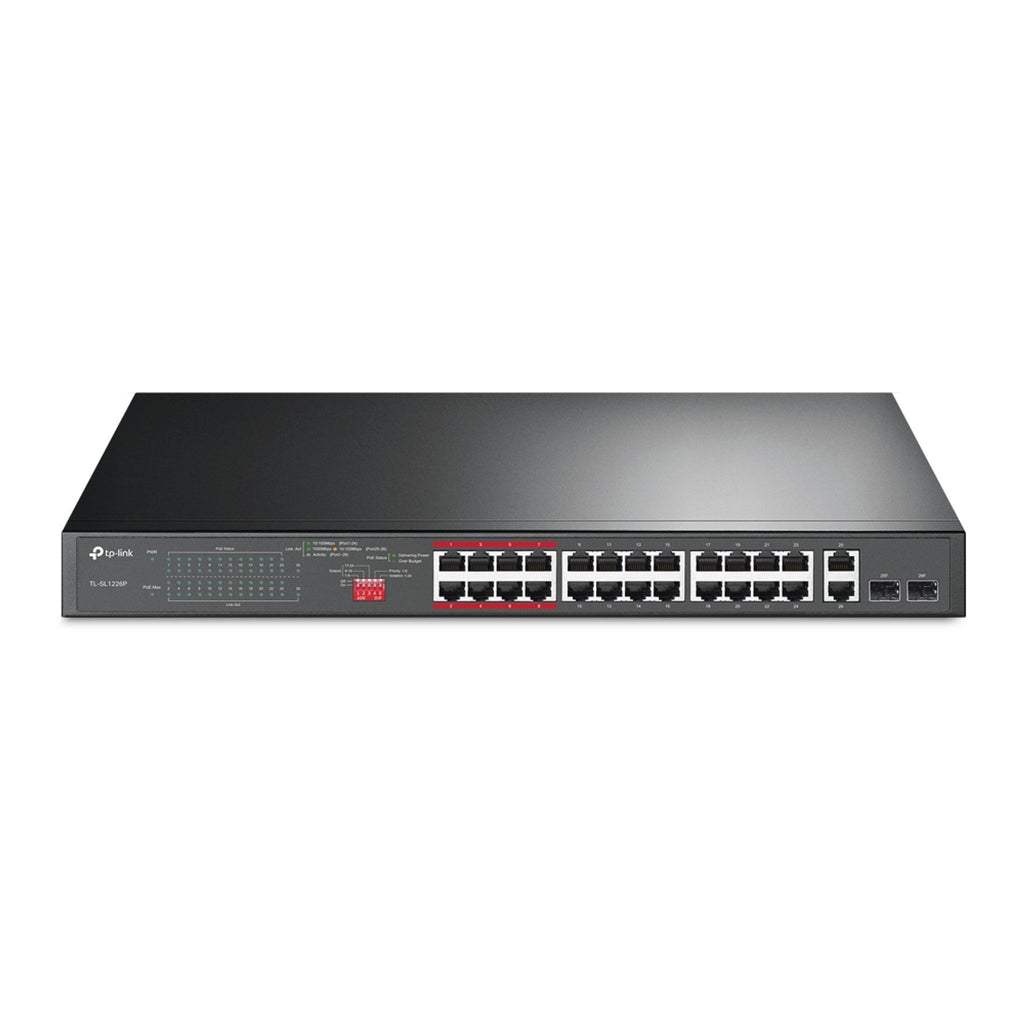

TP-Link TL-SL1226P 24-Port PoE+ Unmanaged Switch
$351.20
Skip to product information
TP-Link TL-SL1226P 24-Port PoE+ Unmanaged Switch
$351.20
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 5-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Connect a whole system of cameras across your business or home with 24 PoE+ ports. It has a 250W total power budget and can send data up to 250 metres in Extend Mode.
Key features

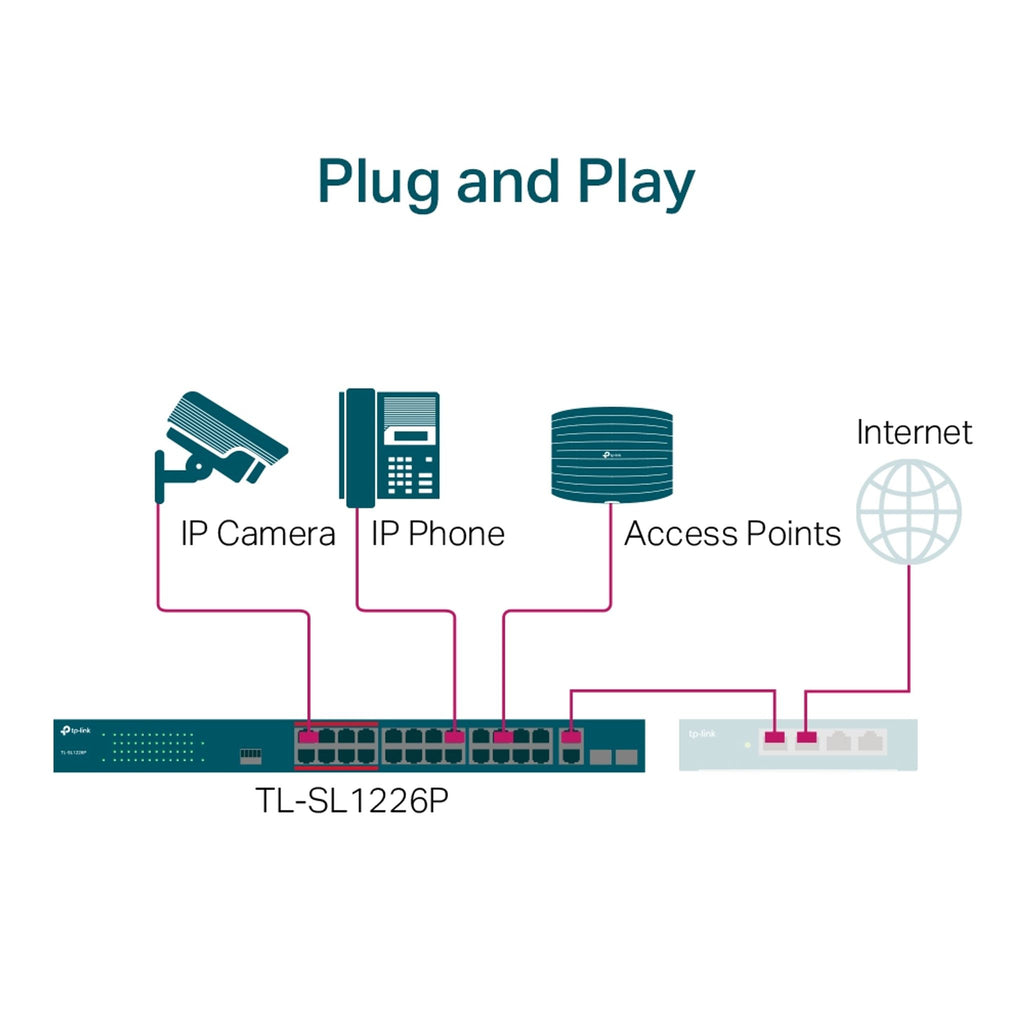

- Plug and play operation with no configuration or installation required

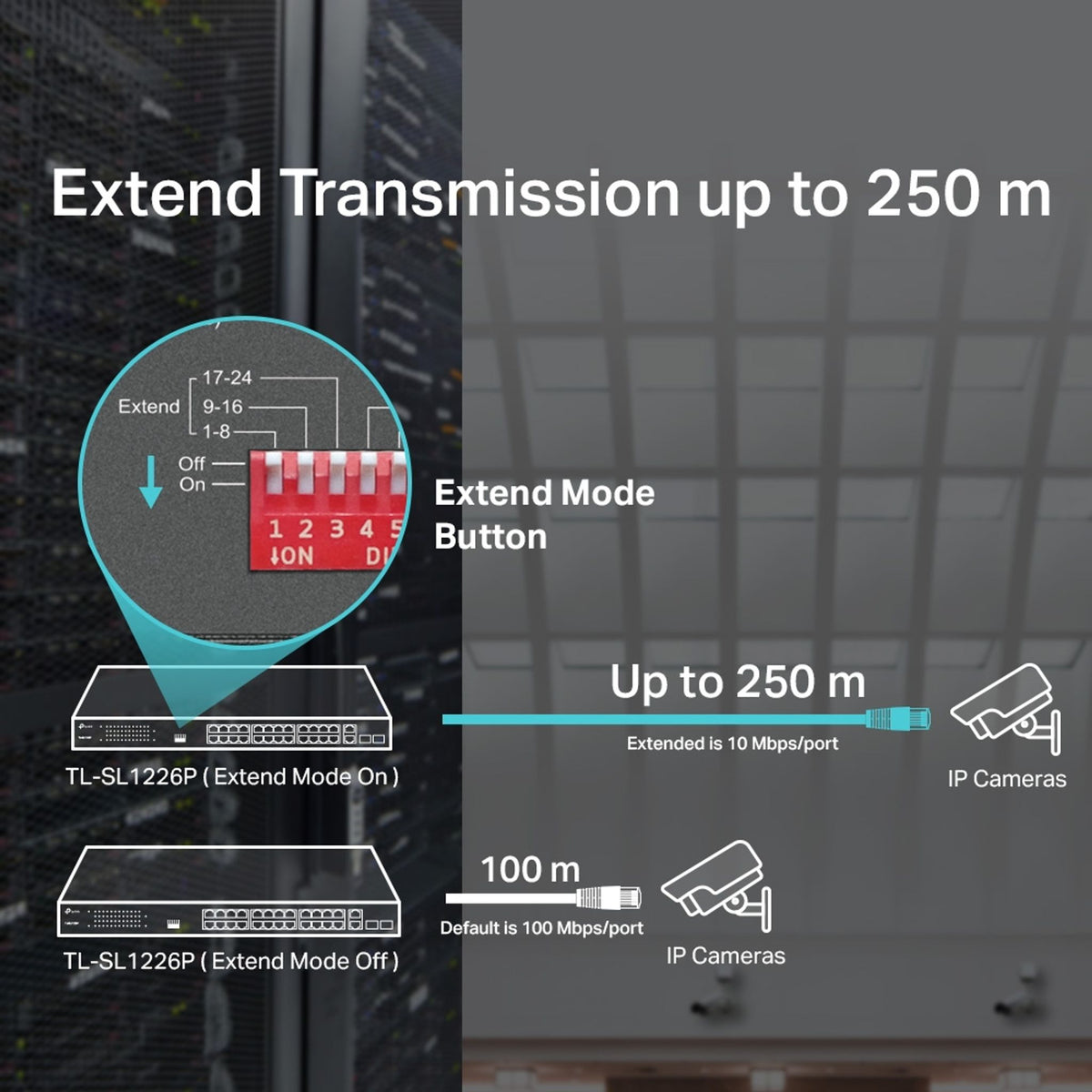

- Extend Mode allows data and power transmission up to 250 m

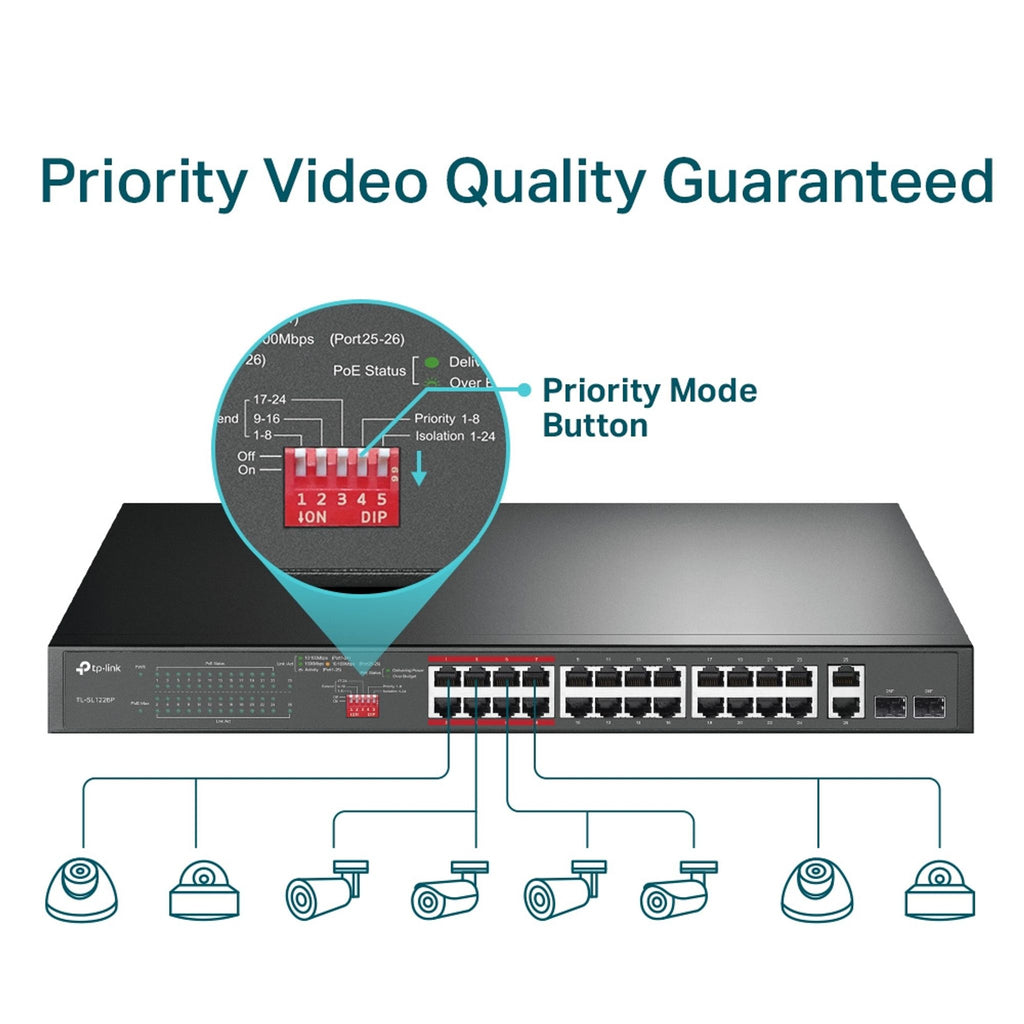

- Priority Mode guarantees quality for sensitive applications on ports 1-8
- Isolation Mode provides one-click client traffic separation for security and performance
- Intelligent power supply with PD detection
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | TL-SL1226P |
| Warranty | 5-year manufacturer warranty |
| Total ports | 28 |
| Connectivity | |

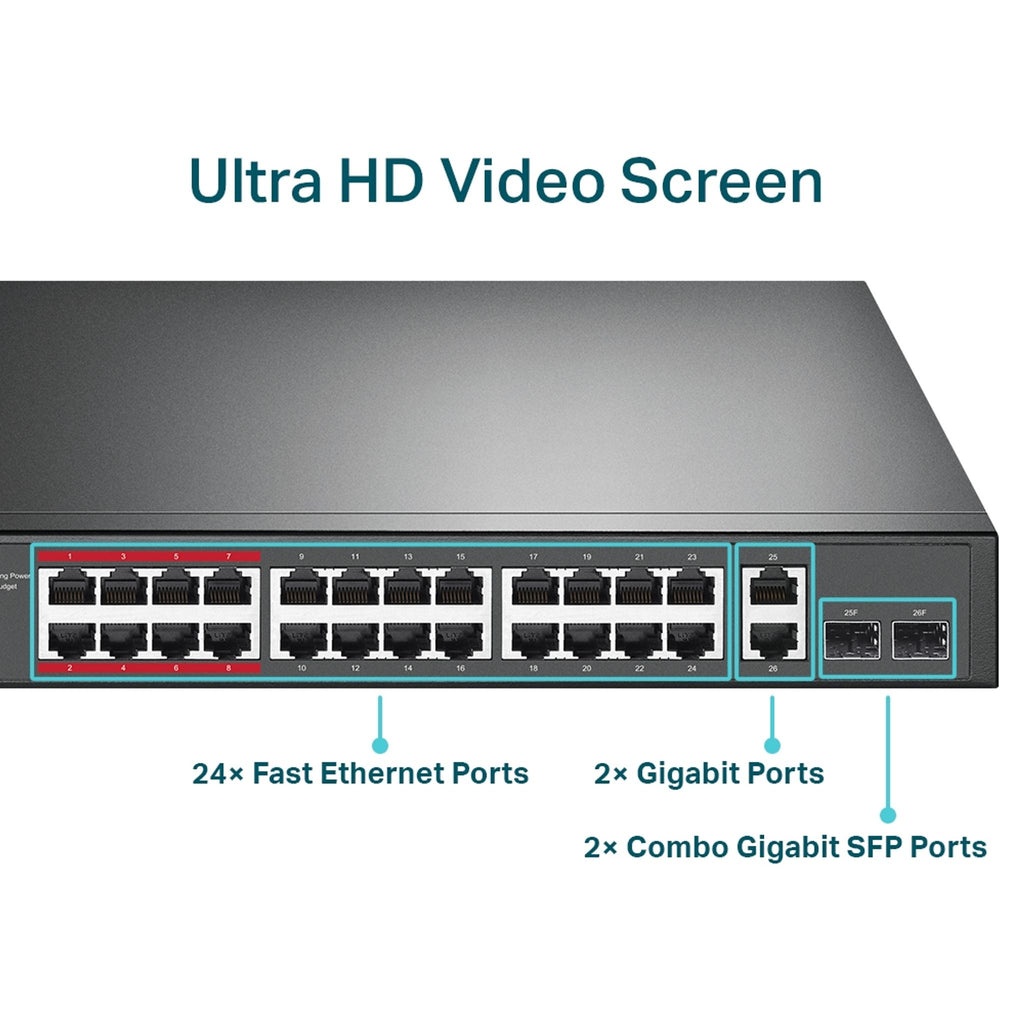

| PoE+ ports | 24× 10/100 Mbps RJ45 |
| Gigabit ports | 2× 10/100/1000 Mbps RJ45 |
| SFP slots | 2× Combo Gigabit SFP |
| Backup bandwidth | 8.8 Gbps |
| MAC address table | 8 K |
| Power | |
| PoE standard | 802.3at/802.3af compliant |

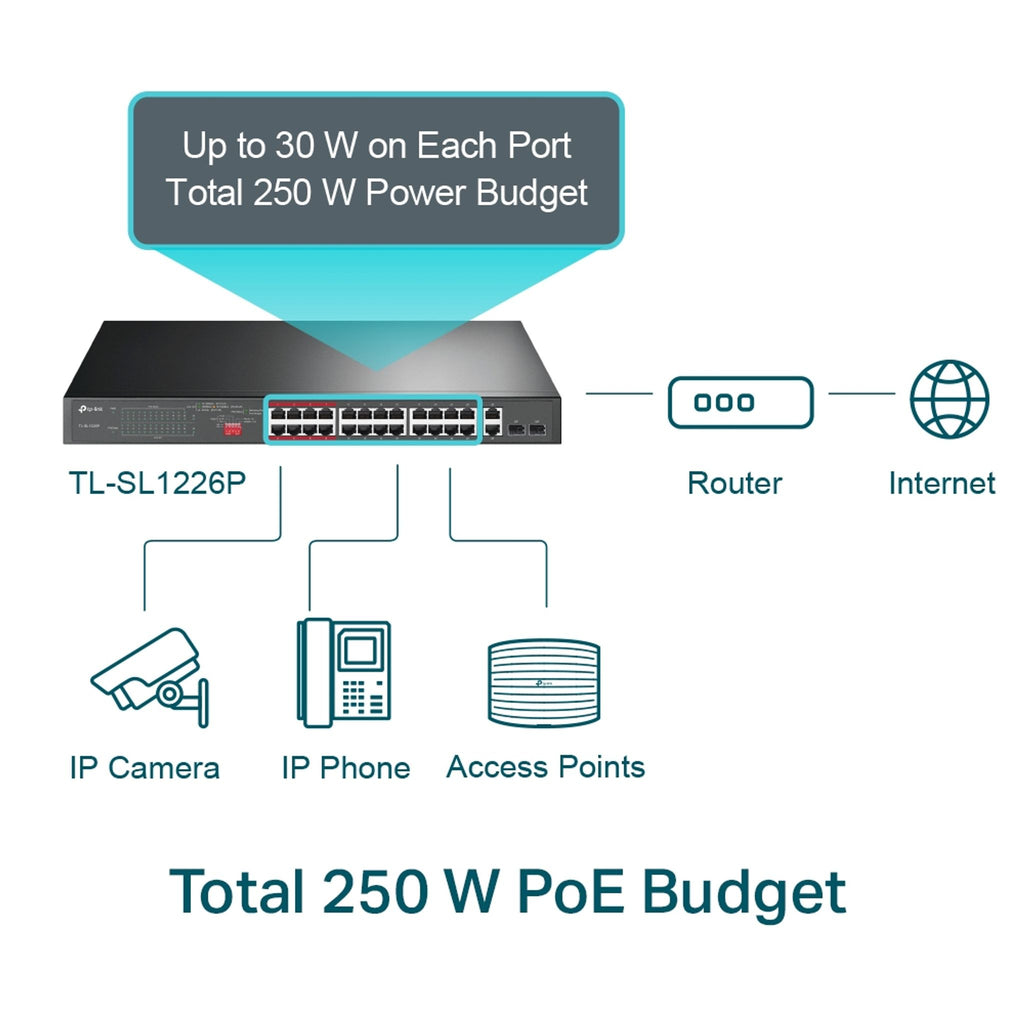

| Total PoE power budget | 250 W |
| Max power per port | 30 W |
| Power supply | 100-240 VAC, 50/60 Hz |
| Max power consumption | 294 W (with 250 W PD connected) |
| Performance | |
| Network media 10BASE-T | UTP category 3, 4, 5 cable or EIA/TIA-568 100 Ohm STP (maximum 100m) |
| Network media 100BASE-TX | UTP category 5, 5e cable or EIA/TIA-568 100 Ohm STP (maximum 100m) |
| Network media 1000BASE-T | UTP category 5, 5e, 6 or above cable or EIA/TIA-568 100 Ohm STP (maximum 100m) |
| Network media 1000BASE-X | MMF, SMF |
| Flow control | IEEE802.3x |
| Hardware | |
| Fan quantity | 2 Fans |
| Physical security lock | Yes |
| Dimensions | 440 × 180 × 44 mm |
Specifications come from the manufacturer and can change between production runs.
