Tycon TP-DCDC-1224 24V Passive PoE DC to DC Converter
$120.76
Skip to product information
Tycon TP-DCDC-1224 24V Passive PoE DC to DC Converter
$120.76
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 12-month manufacturer warranty Plus your Australian Consumer Law rights
Overview
Get 24V Passive PoE for your gear using a 12V or 24V battery system in the shed. It takes a 9-36VDC input and provides up to 19W of power.
Key features
- Converts 12 or 24V battery system power to 24VDC Power over Ethernet

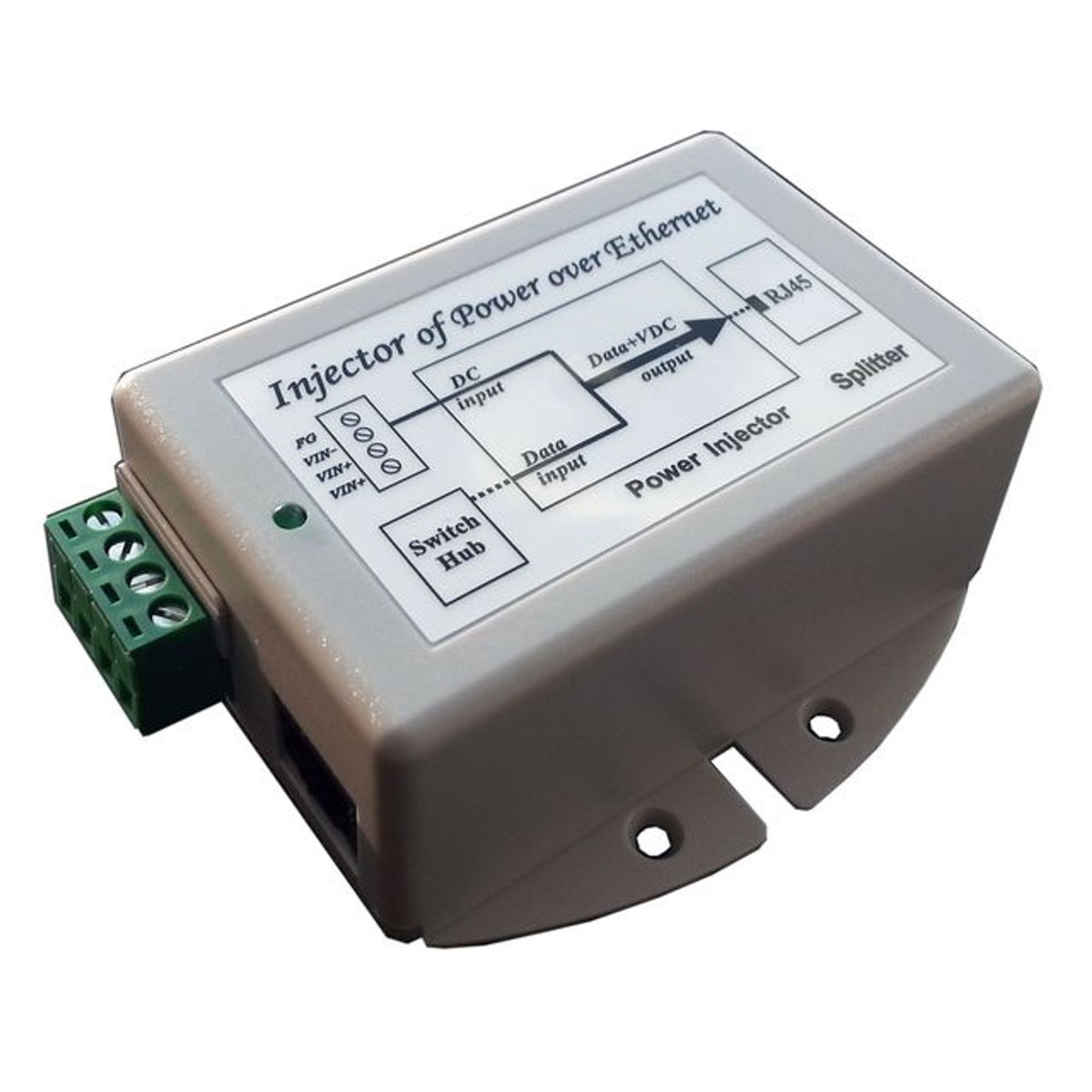

- Integrated POE injector applies 24VDC to CAT5/6 Ethernet cable
- Dual inputs allow connection of two power sources, such as a primary and a backup
- Protects against surge, short circuit, overload, over current and reverse/over voltage

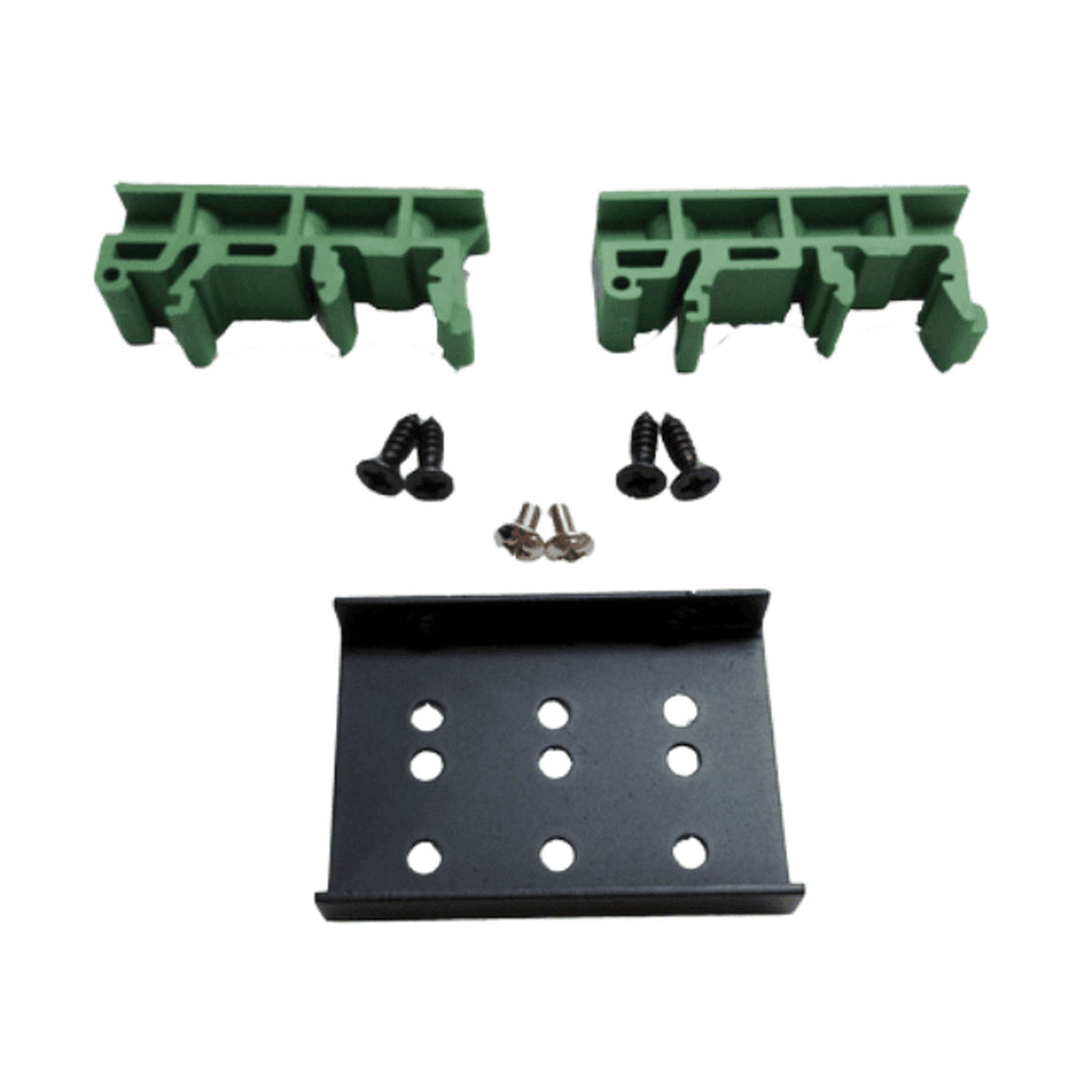

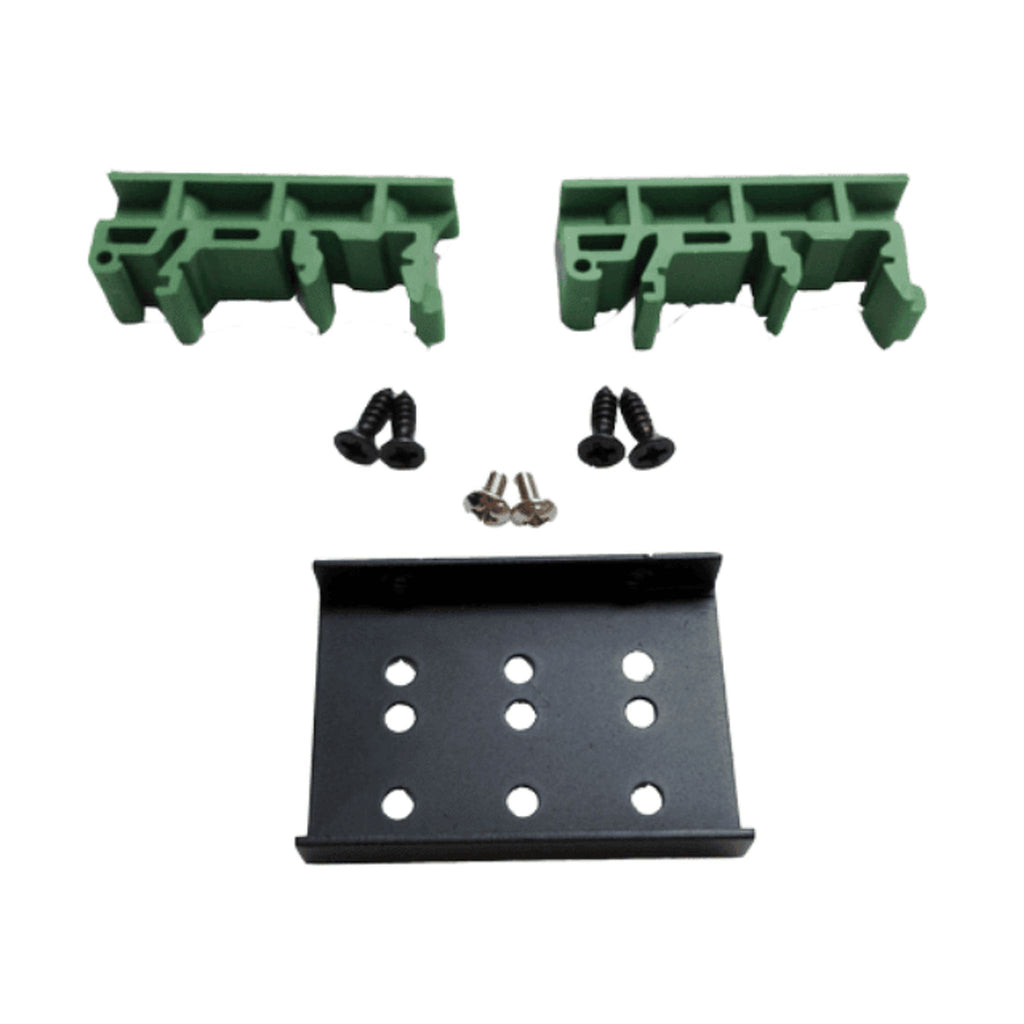

- DIN rail mountable using adaptors
- Compact size to maximize available space
- Supports high temperature operation
Certifications
- I.T.E. Power Supply
- UL Listed
Specifications
| General | |
|---|---|
| Brand | Tycon |
| SKU | TP-DCDC-1224 |
| Warranty | 12-month manufacturer warranty |
| Performance | |
| Input voltage | 9-36VDC |
| Output voltage | 24VDC Passive |
| Power output | up to 24W |
| High power | up to 19W |
| Data rate | 10/100MB |
| Connectivity | |
| Data-in | shielded RJ45 Jack |
| Data-out and POE power | shielded RJ45 output jack |
| Power delivery | unused Ethernet pins 4,5(V+) and 7,8(V-) |
| Physical specs | |
| Width | 122 mm |
| Height | 42 mm |
| Length | 86 mm |
| Weight | 0.14 kg |
Specifications come from the manufacturer and can change between production runs.
Q&A
Be the first to ask a question
