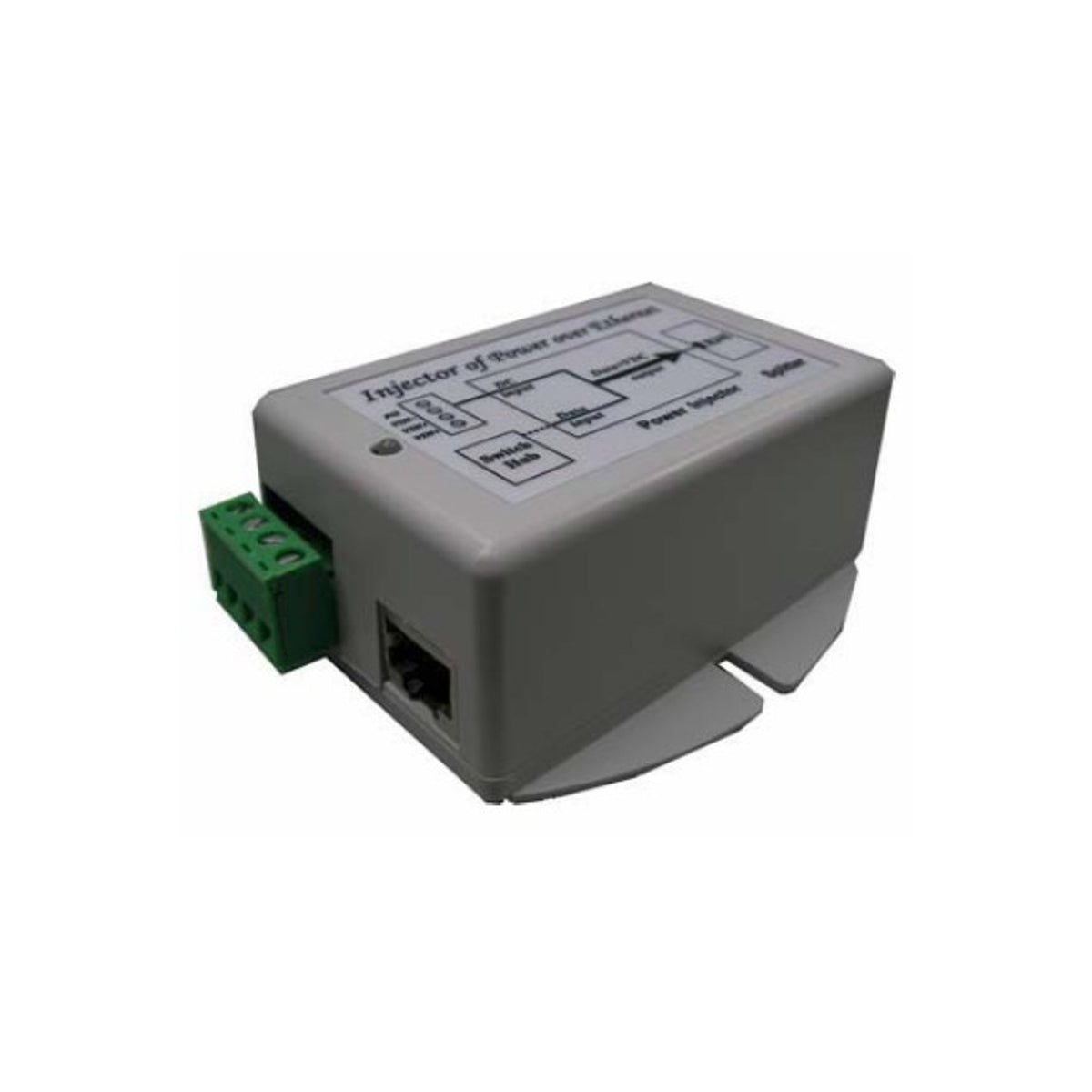

Tycon TP-DCDC-1224G 24V Passive Gigabit PoE Injector
$148.59
Skip to product information
Tycon TP-DCDC-1224G 24V Passive Gigabit PoE Injector
$148.59
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 12-month manufacturer warranty Plus your Australian Consumer Law rights
Overview
Get power and data to your gear from a battery or ute using this efficient converter. It takes a 9-36VDC input and provides a regulated 24V passive PoE output.
Key features
- Converts 12VDC voltage sources like batteries or vehicles to Passive PoE
- Integrated PoE injector for power and data output via CAT5/6 Ethernet cable
- Regulated and protected output voltage
- Dual positive inputs for primary and backup power sources
- Protects against surge, short circuit, and overload
- Supports high temperature operation
- Removable wire terminal input for up to 12AWG wires
Certifications
- I.T.E. Power Supply
- UL Listed
Specifications
| General | |
|---|---|
| Brand | Tycon |
| SKU | TP-DCDC-1224G |
| Warranty | 12-month manufacturer warranty |
| Performance | |
| Input voltage | 9-36VDC |
| Output voltage | 24VDC (Passive) |
| Power output | 24W |
| Data rate | Gigabit |
| PoE pins | 4,5(V+) and 7,8(V-) |
| Connectivity | |
| Data-in | Shielded RJ45 Jack |
| Data-out | Shielded RJ45 output jack |
| Physical specs | |
| Dimensions | 85 x 76 x 36mm |
| Weight | 134g |
Specifications come from the manufacturer and can change between production runs.
