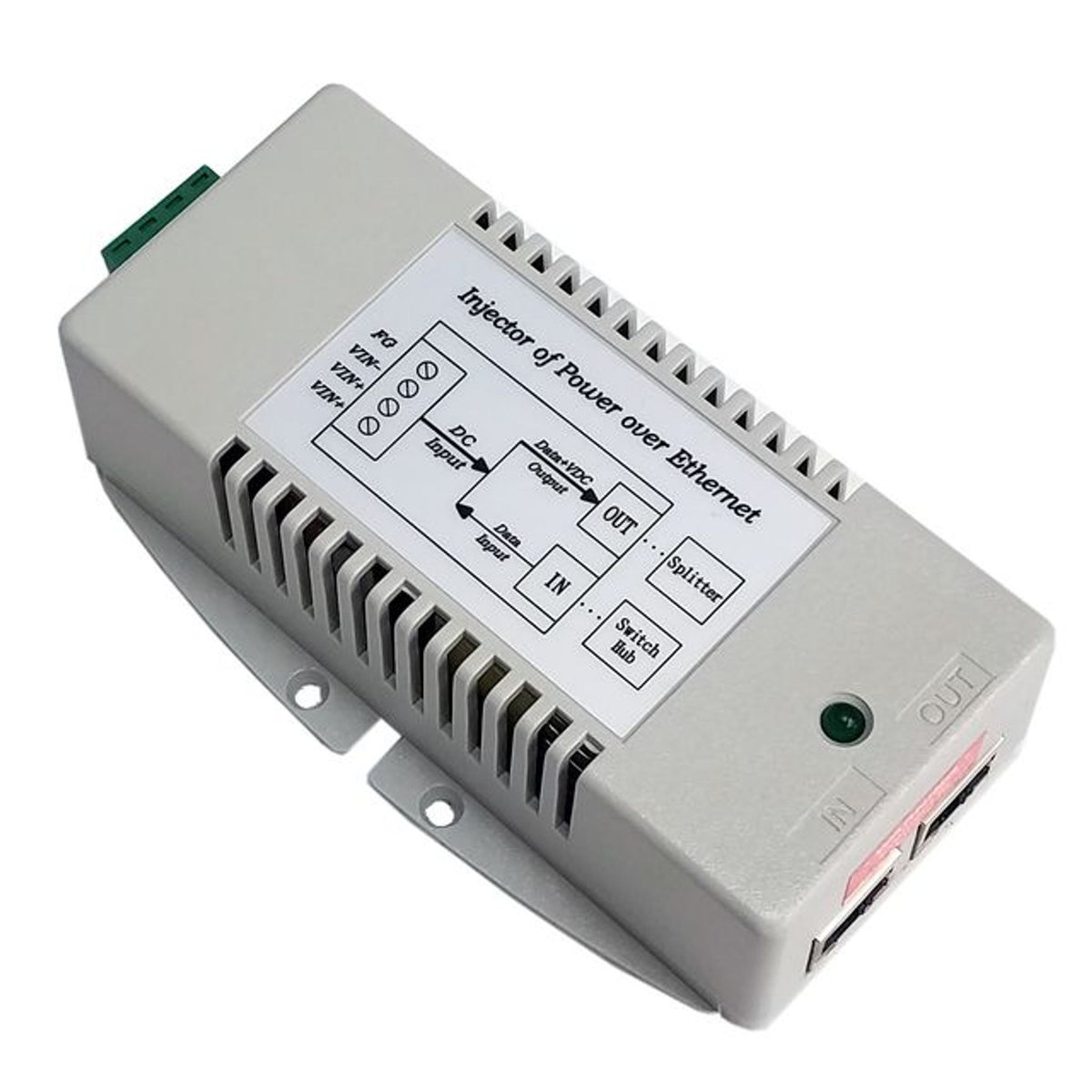

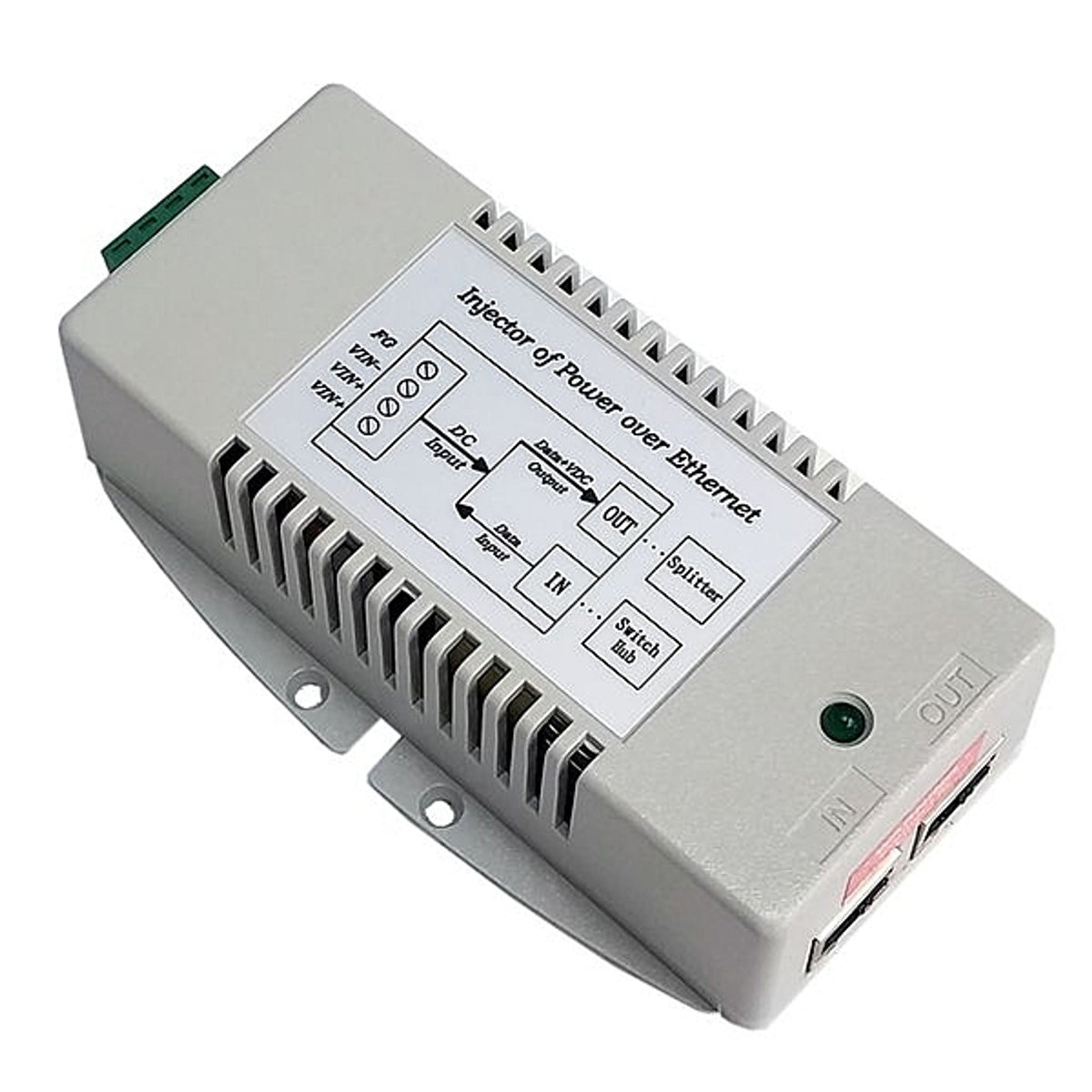

Tycon TP-DCDC-2448GD-HP Gigabit 802.3af/at PoE Injector
$238.29
Skip to product information
Tycon TP-DCDC-2448GD-HP Gigabit 802.3af/at PoE Injector
$238.29
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 12-month manufacturer warranty Plus your Australian Consumer Law rights
Overview
Get power to your security cameras from a battery system or in the ute. This gigabit injector takes an 18V to 36V input and provides up to 50W of PoE power.
Key features
- Provides IEEE 802.3af and IEEE 802.3at Power over Ethernet from a 24VDC voltage source
- Supports dual inputs for connecting two power sources, such as a primary and a backup
- Protects equipment with surge, short circuit, over current, and reverse/over voltage protection
- Maximises available space with a compact size
- Operates in high temperature environments
Certifications
- UL Listed
Specifications
| General | |
|---|---|
| Brand | Tycon |
| SKU | TP-DCDC-2448GD-HP |
| Warranty | 12-month manufacturer warranty |
| Performance | |
| Input voltage | 18VDC - 36VDC |
| Power output | up to 50W |
| Data speed | 10/100/1000MB |
| Connectivity | |
| Data-in | shielded RJ45 Jack |
| Data-out | shielded RJ45 output jack |
| PoE pins | 4,5(V+) and 7,8(V-) |
| Physical specs | |
| Width | 46 mm |
| Height | 84 mm |
| Length | 168 mm |
| Weight | 0.24 kg |
Specifications come from the manufacturer and can change between production runs.
Q&A
Be the first to ask a question
