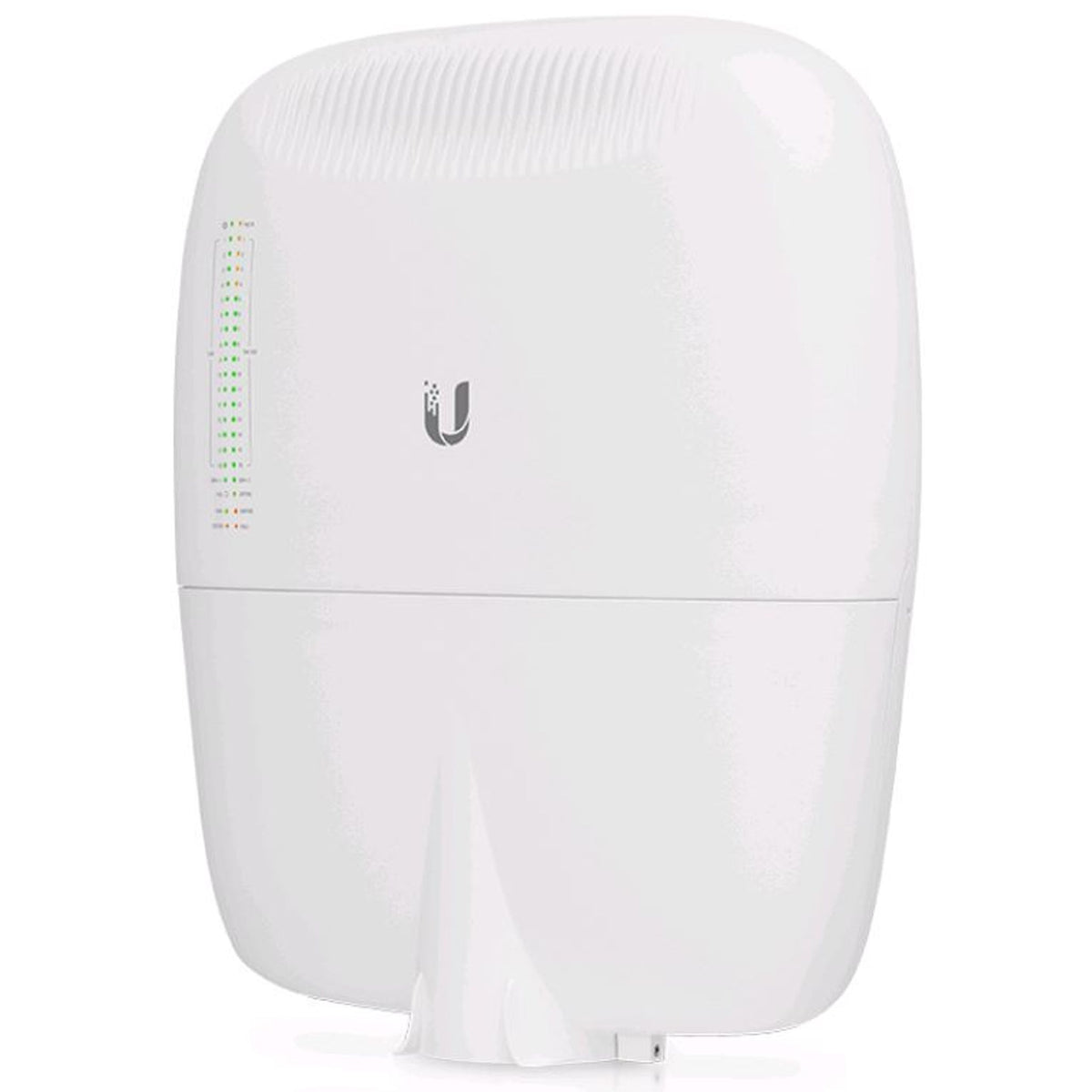

Ubiquiti EP-S16 16 Port PoE Outdoor WISP Switch
$359.00
Skip to product information
Ubiquiti EP-S16 16 Port PoE Outdoor WISP Switch
$359.00
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 12-month manufacturer warranty Plus your Australian Consumer Law rights
Overview
Set up your outdoor network gear with this weatherproof switch that mounts to a pole or wall. It features 16 Gigabit RJ45 ports and two SFP+ ports for high speed connections.
Key features
- Application-specific WISP control point
- Layer-2 switch with some layer-3 capabilities
- Weatherproof enclosure for outdoor use
- Pole or wall mount installation
Specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| SKU | EP-S16 |
| Warranty | 12-month manufacturer warranty |
| PoE ports | 16 |
| Total ports | 18 |
| Connectivity | |
| RJ45 ports | (16) GbE |
| SFP+ ports | (2) 1/10G |
| Performance | |
| Wind loading | 153 N at 200 km/h |
| Wind survivability | 200 km/h |
| Ambient operating temperature | -40 to 65° C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Power | |
| Power method | (1) DC terminal block - 54V DC, 6A input |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Supported voltage range | 42-56V DC |
| Max. power consumption | 40W (Excludes PoE output) |
| Protection | Self-correcting polarity protection on DC terminal block and diode red protection on all power inputs |
| Physical specs | |
| Width | 466 mm |
| Height | 130 mm |
| Length | 376 mm |
| Weight | 5.36 kg |
Specifications come from the manufacturer and can change between production runs.
