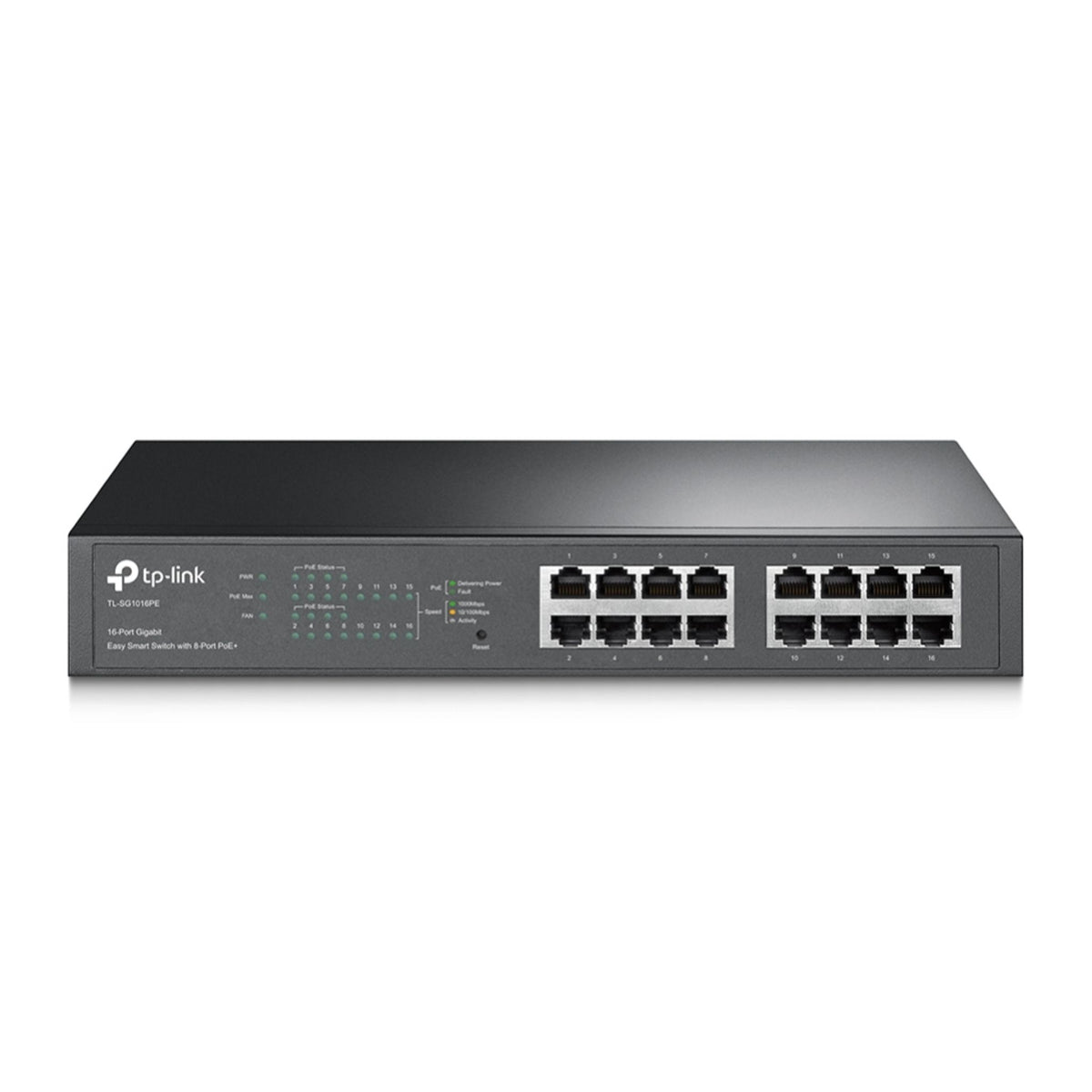

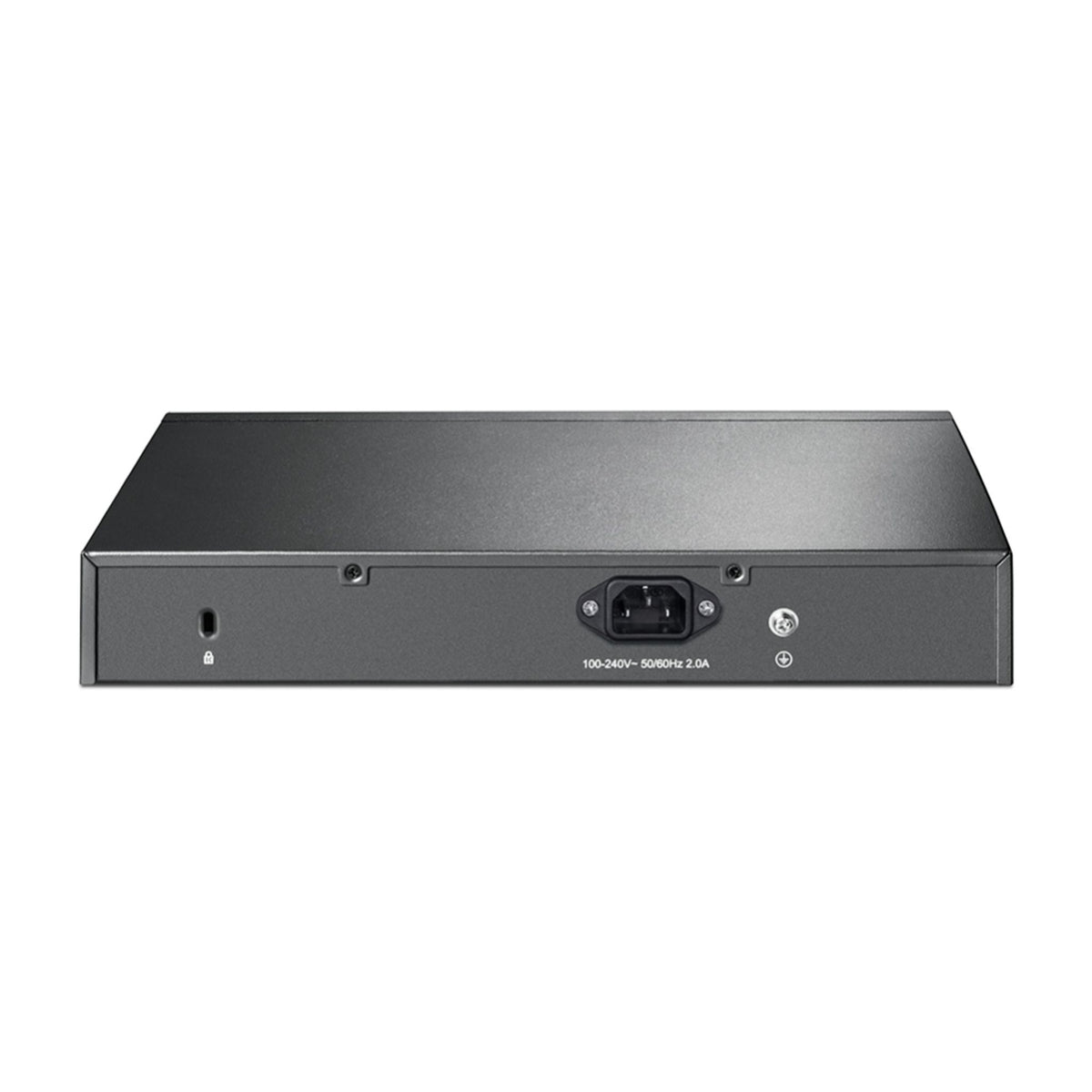

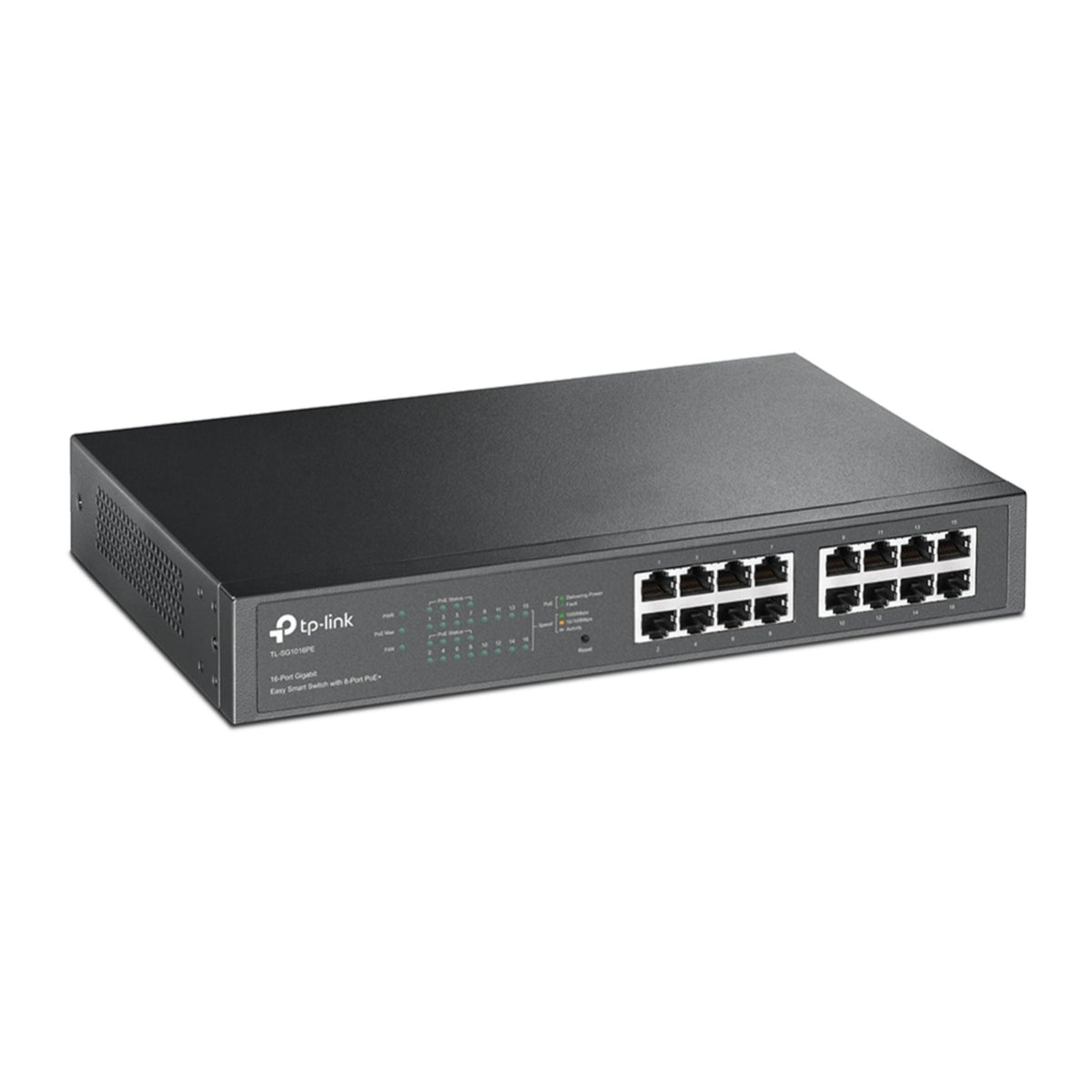

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE+ Switch
$195.73
Skip to product information
TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE+ Switch
$195.73
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 5-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Expand the network at your home or business with a switch that fits on a desk or in a rack. It has 8 PoE+ ports to power your gear over a single cable.
Key features
- Transfers data and power over a single cable via 8 PoE+ ports
- Reduces power output by up to 75% with energy-efficient technology
- Plug and play design requires no configuration
- Compatible with IEEE 802.3af/at compliant devices
Certifications
- FCC
- CE
- RoHS
In the box
- TL-SG1016PE
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | TL-SG1016PE |
| Warranty | 5-year manufacturer warranty |
| Hardware | |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| PoE+ Ports | 8 Ports |
| Backbound Bandwidth | 32 Gbps |
| Mac Address Table | 8K |
| Buffer Size | 1.5 Mbits |
| Fan Quantity | 1 |
| Dimensions | 294*180*44 mm |
| Performance | |
| Transfer Method | Store-And-Forward |
| Priority Function | Included |
| Mac Address | Auto-Learning and Auto-Aging |
| Flow Control | IEEE802.3x for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Power | |
| Power Supply | 100-240VAC, 50/60Hz |
| Maximum Power Consumption (PoE on) | 124.4W (220V/50Hz) |
| Maximum Power Consumption (PoE off) | 14.4W (220V/50Hz) |
| Consumption (no PD connected) | 9.5 watts |
| Consumption (with 126w PD connected) | 140.1 watts |
| Connectivity | |
| 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) or EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX | UTP category 5, 5e cable (maximum 100m) or EIA/TIA-568 100Ω STP (maximum 100m) |
| 1000BASE-T | UTP category 5, 5e, 6 or above cable (maximum 100m) or EIA/TIA-568 100Ω STP (maximum 100m) |
| Environment | |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | -40℃ to 70℃ |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
Specifications come from the manufacturer and can change between production runs.
Guides
| Resource | Type |
|---|---|
| TL-SG1016PE user manual | User manual |
