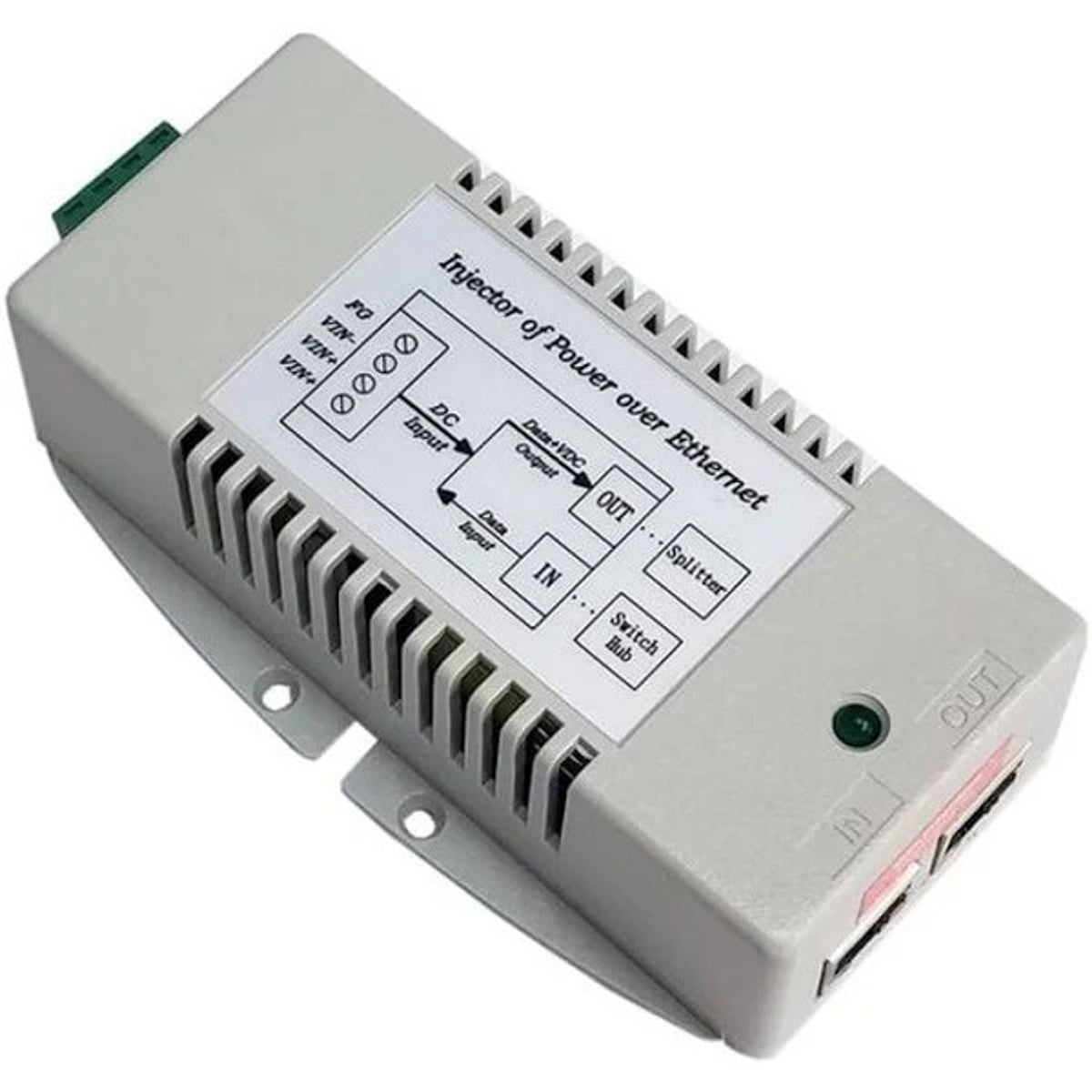

Tycon TP-DCDC-1248GDX2-HP Dual Port Gigabit PoE Inserter
$449.06
Skip to product information
Tycon TP-DCDC-1248GDX2-HP Dual Port Gigabit PoE Inserter
$449.06
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 12-month manufacturer warranty Plus your Australian Consumer Law rights
Overview
Power two devices from a single 12VDC source, like a battery in the shed, without needing a PoE switch. It features dual 802.3af/at outputs with a combined power output of 42W.
Key features
- Powers two devices from a single injector with dual 802.3af/at compatible outputs
- Handles the data path between devices to remove the need for a PoE switch
- Supports two DC inputs for primary and backup power sources
- Protects connected devices with built-in surge protection on all 8 wires
- Prevents grounding or negative voltage issues via isolated input and output voltage
- Includes protection against short circuits, overload, over current, and reverse or over voltage
- Mounts to DIN rails for industrial installations
Specifications
| General | |
|---|---|
| Brand | Tycon |
| SKU | TP-DCDC-1248GDX2-HP |
| Warranty | 12-month manufacturer warranty |
| Performance | |
| Input voltage | 12VDC |
| Output voltage | 56VDC |
| Output power per port | 21W |
| Total combined output | 42W |
| Surge protection | 15kV |
| Data compatibility | 10/100/1000 |
| Physical specs | |
| Width | 84 mm |
| Height | 48 mm |
| Length | 166 mm |
| Weight | 0.26 kg |
Specifications come from the manufacturer and can change between production runs.
