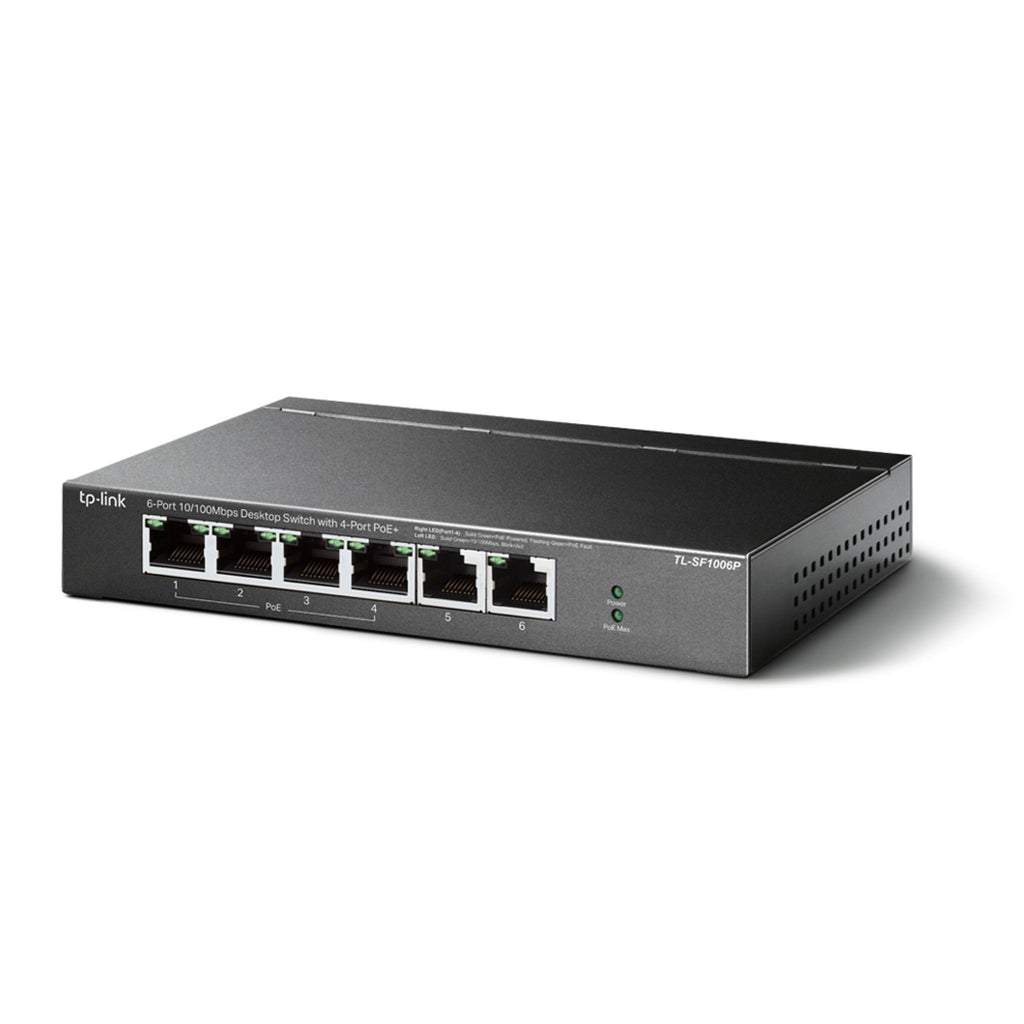

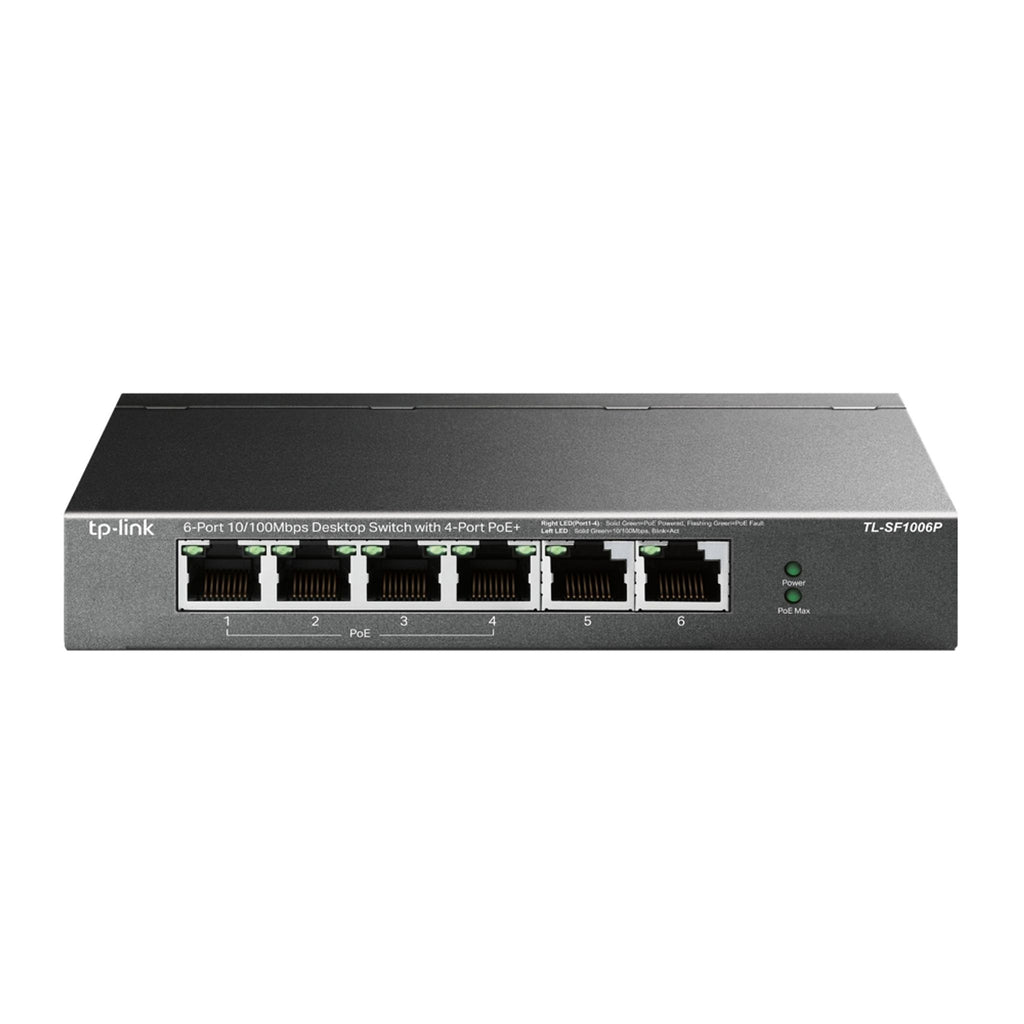

TP-Link TL-SF1006P 6-Port Desktop Switch with 4 PoE+ Ports
$79.00
Skip to product information
TP-Link TL-SF1006P 6-Port Desktop Switch with 4 PoE+ Ports
$79.00
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 5-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Connect your cameras and gear with a simple plug and play setup. Four PoE+ ports provide up to 30W each, with a total power budget of 67W for your home network.
Key features
- Simplifies installation with plug and play setup requiring no configuration
- Transfers data and power on individual cables via 4 PoE+ ports
- Extends data and power transmitting range up to 250m using Extend Mode
- Guarantees quality for sensitive applications via Priority Mode on ports 1-2
- Operates silently with a fanless design
Certifications
- FCC, CE, RoHS

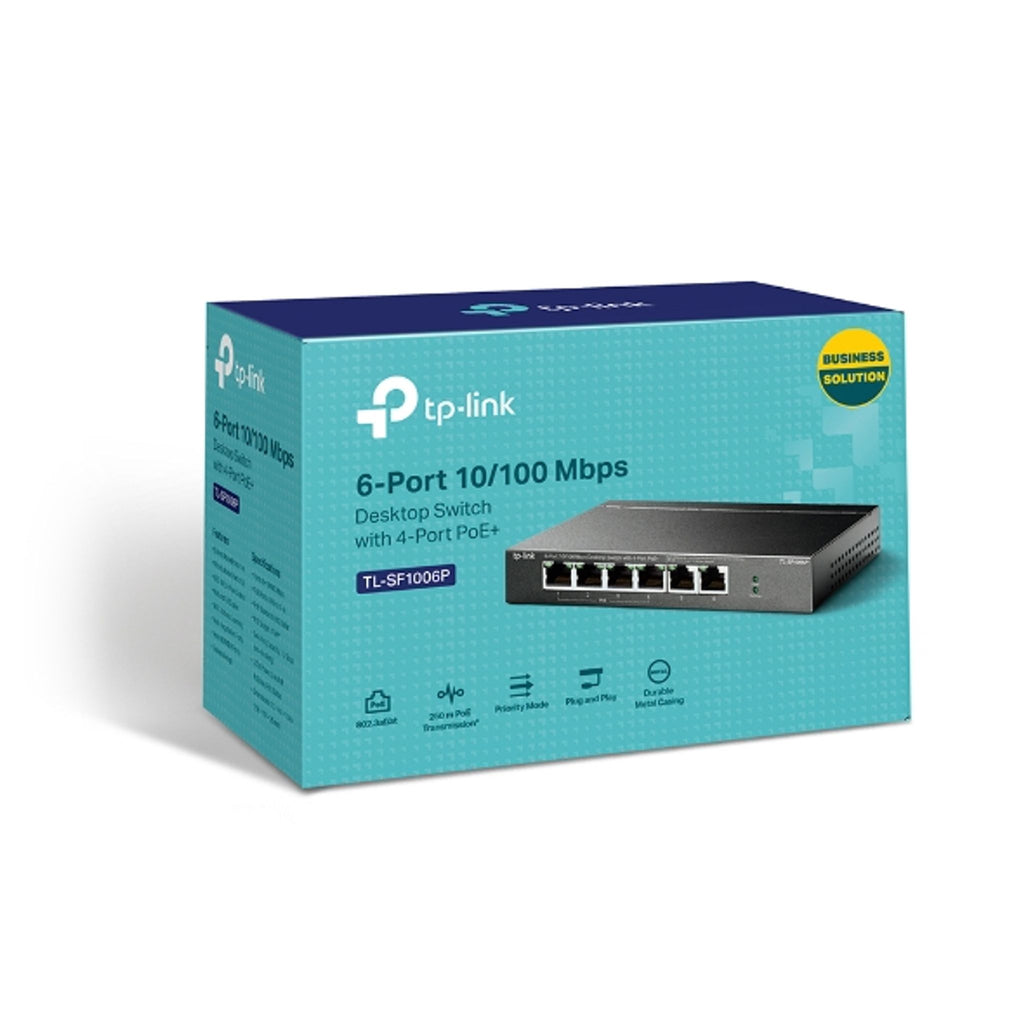

In the box
- TL-SF1006P
- Power Adapter
- Installation Guide
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | TL-SF1006P |
| Warranty | 5-year manufacturer warranty |
| Total ports | 6 |
| Performance | |
| Interface | 6 10/100 Mbps RJ45 ports |
| PoE ports | Ports 1-4 |
| Switching capacity | 1.2 Gbps |
| Packet forwarding rate | 0.8928 Mpps |
| Mac address table | 2K |
| Jumbo frame | 2 KB |
| Transmission method | Store-And-Forward |
| Power | |
| PoE standard | IEEE 802.3af/at compliant |
| Max power per PoE port | 30 W |
| Total PoE power budget | 67 W |
| External power adapter | 53.5 V DC / 1.31 A |
| Max power consumption | 74 W (with 67 W PD connected) |
| Connectivity | |
| Network media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) |
| Network media 100BASE-TX | UTP category 5, 5e cable (maximum 100m) |
| Flow control | IEEE802.3x for full-duplex mode and backpressure for half-duplex mode |
| Physical specs | |
| Dimensions | 158 x 101 x 25 mm |
| Physical security lock | Yes |
| Operating temperature | 0-40 ℃ |
| Storage temperature | -40-70 ℃ |
Specifications come from the manufacturer and can change between production runs.
