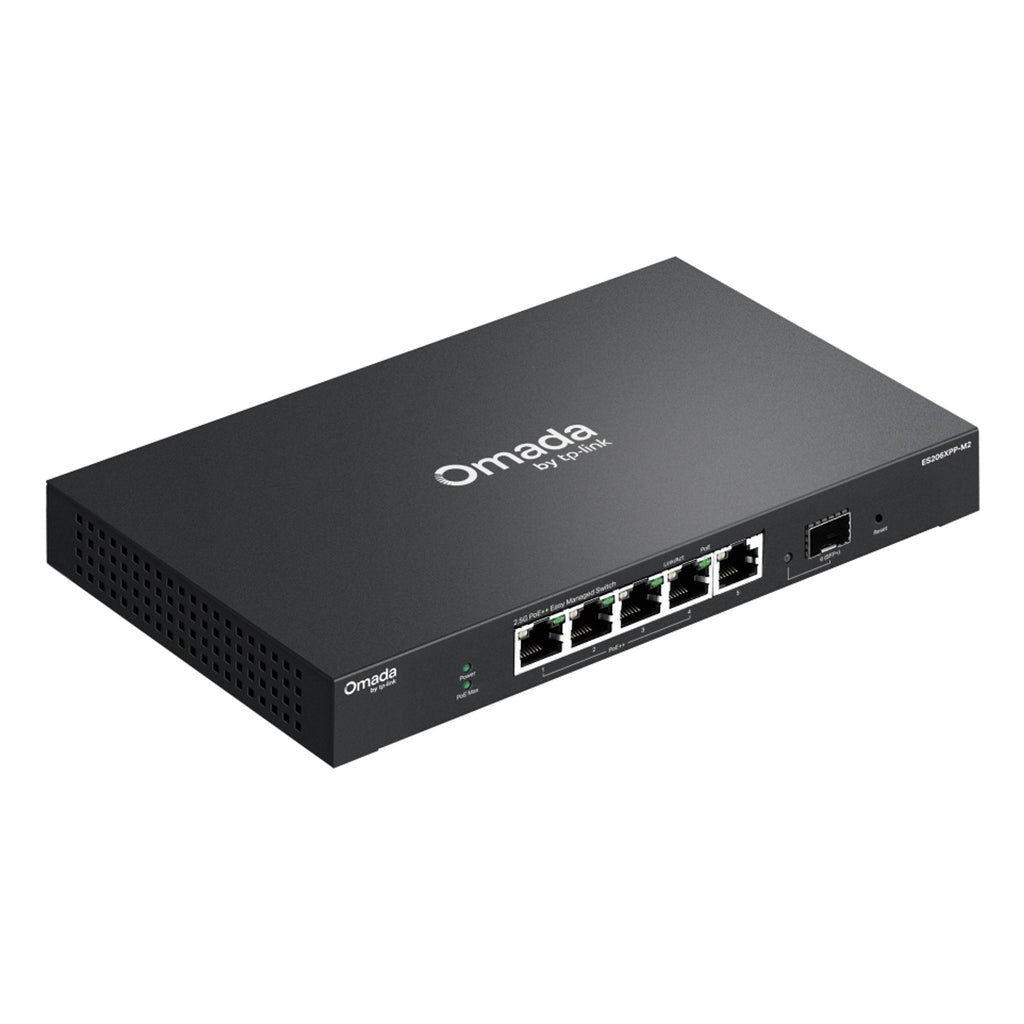

TP-Link ES206XPP-M2 5-Port 2.5G 1-Port 10G PoE++ Managed Switch
$265.03
Skip to product information
TP-Link ES206XPP-M2 5-Port 2.5G 1-Port 10G PoE++ Managed Switch
$265.03
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 5-year manufacturer warranty Plus your Australian Consumer Law rights
Overview
Get high speed networking for your home or business with a 10 Gbps SFP+ slot. It features four PoE++ ports with a 120W total budget to power your gear.
Connectivity
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Auto-Negotiation/Auto MDI/MDIX
PoE
- Supports 802.3af/at/bt PoE++ standards
- PoE Ports: 4 Ports
- PoE Budget: 120 W available for all PoE++ ports
- Max power per port: 90 W
- Fast PoE and Perpetual PoE
- PoE Auto Recovery
Software Features
- Quality of Service: Port-based/802.1p/DSCP QoS with 8 Priority Queues
- Priority Schedule Mode: WRR (Weighted Round Robin)
- Bandwidth Control: Port-Based Rating Limit
- Storm Control: Multiple Control Modes (kbps/pps) for Broadcast/Multicast/Unknown-Unicast
- L2 Features: Static Link Aggregation, Loop Prevention, Loopback Detection, 802.3x Flow Control
- Mirroring: Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both)
- Port Statistics: Port Mirror Status and Traffic Statistics
- L2 Multicast: IGMP v1/v2/v3 Snooping with Fast Leave
- VLAN: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID)
- 802.1ab LLDP
Power and Hardware
- Fanless design for silent operation

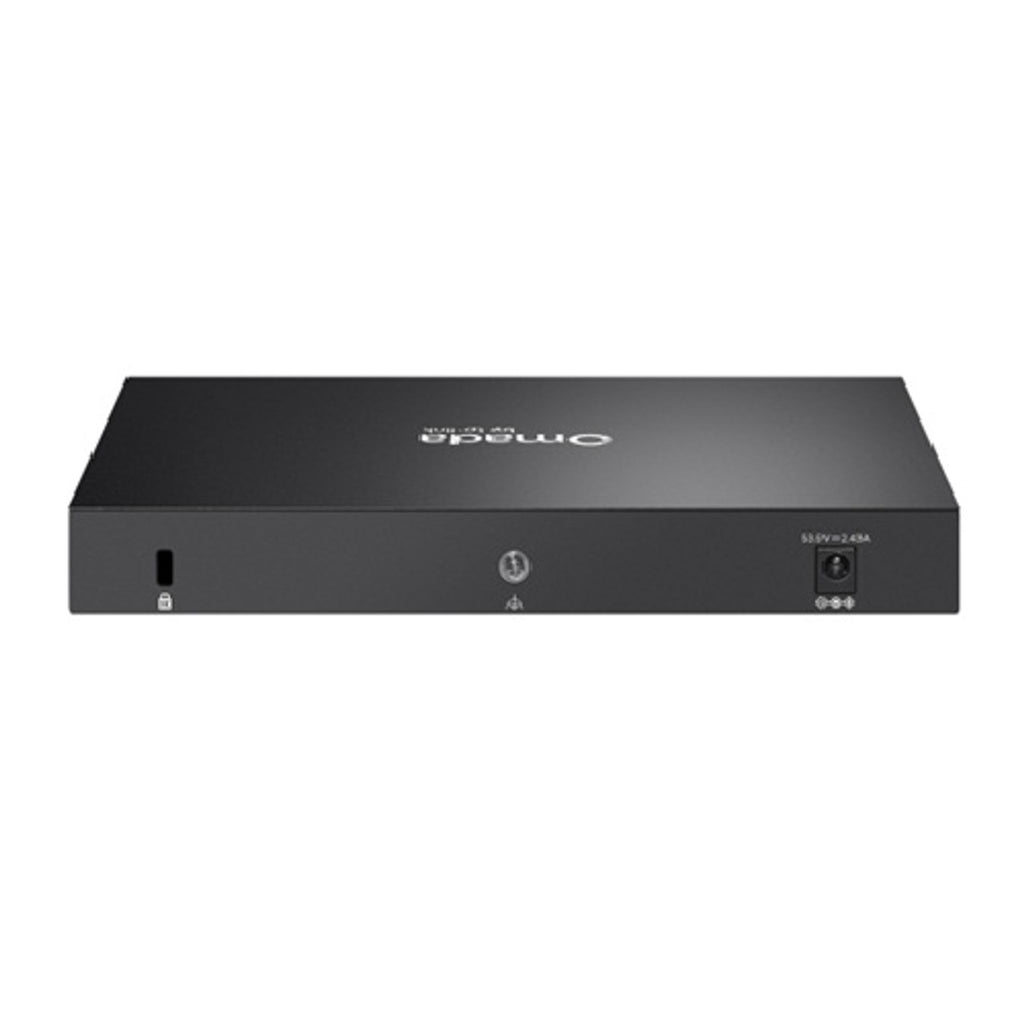

- DC Power Adapter: 53.5 VDC / 2.43 A
- Surge Protection: ±6 kV

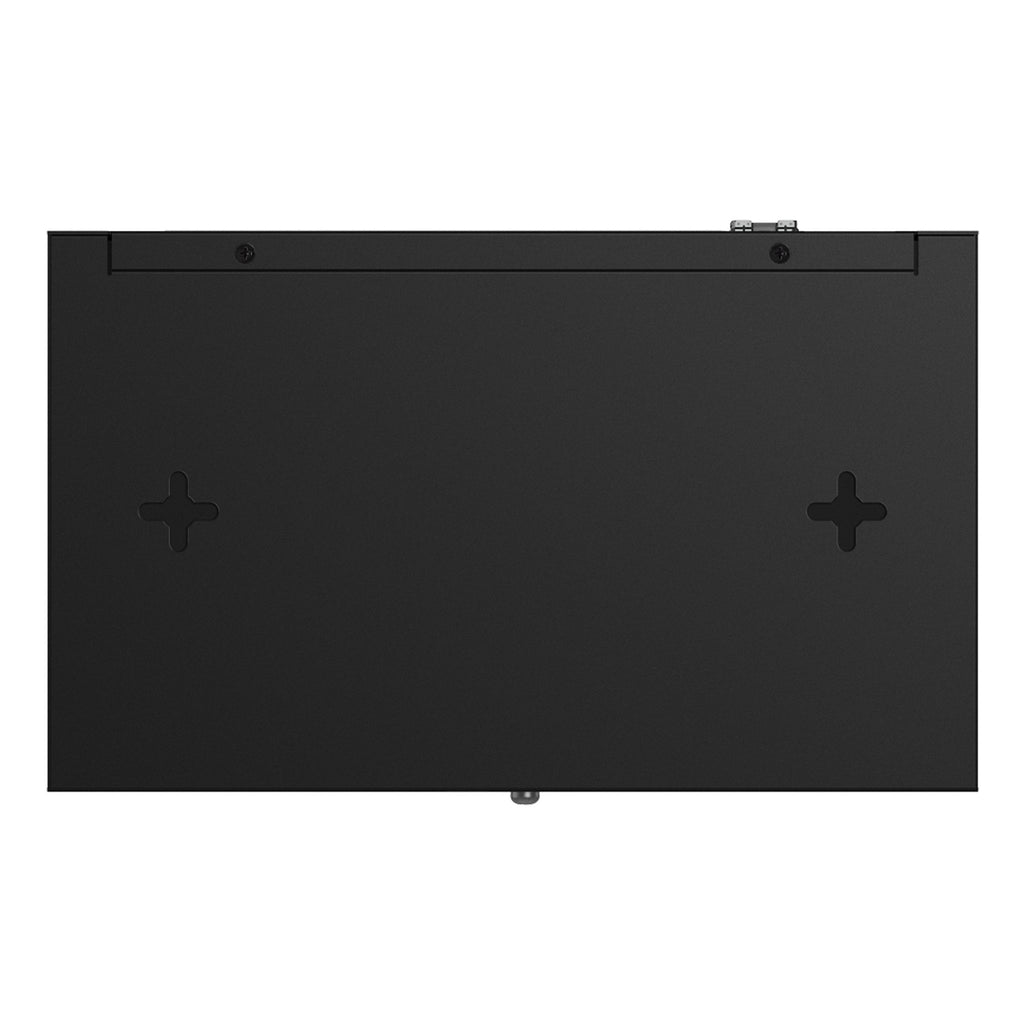

- Installation: Desktop or Wall Mount
- Physical Security Lock included
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | ES206XPP-M2 |
| Warranty | 5-year manufacturer warranty |
| PoE ports | 4 |
| PoE budget | 120 W |
| Total ports | 6 |
| Performance | |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Transmission Method | Store-And-Forward |
| Physical Specs | |
| Dimensions | 209 × 126 × 26 mm |
Specifications come from the manufacturer and can change between production runs.
