TP-Link TL-SG105PE 5-Port Gigabit Easy Smart PoE+ Switch
$82.13
In stock, ships from Australia
- Free shipping over $300 Flat $20 under that
- Express 1 to 2 business days To most Australian addresses
- 30-day returns On unused gear
- 5-year manufacturer warranty Plus your Australian Consumer Law rights
Overview

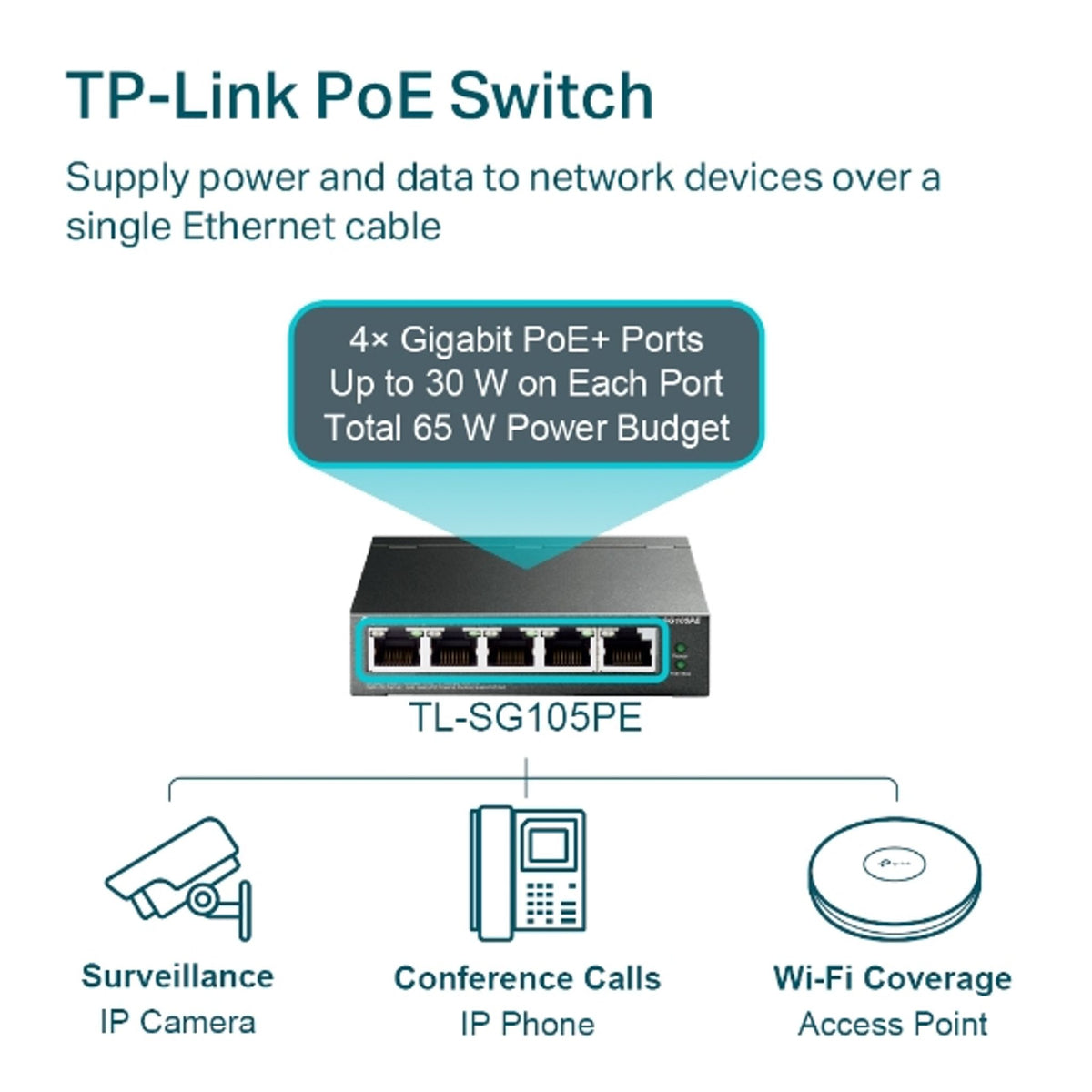

Connect your cameras and gear with a smart switch that handles data and power on one cable. It has four PoE+ ports with a total power budget of 65W.
Key features
- Transfers data and power on one single cable via PoE+ ports
- Provides network monitoring, traffic prioritization, and VLAN features

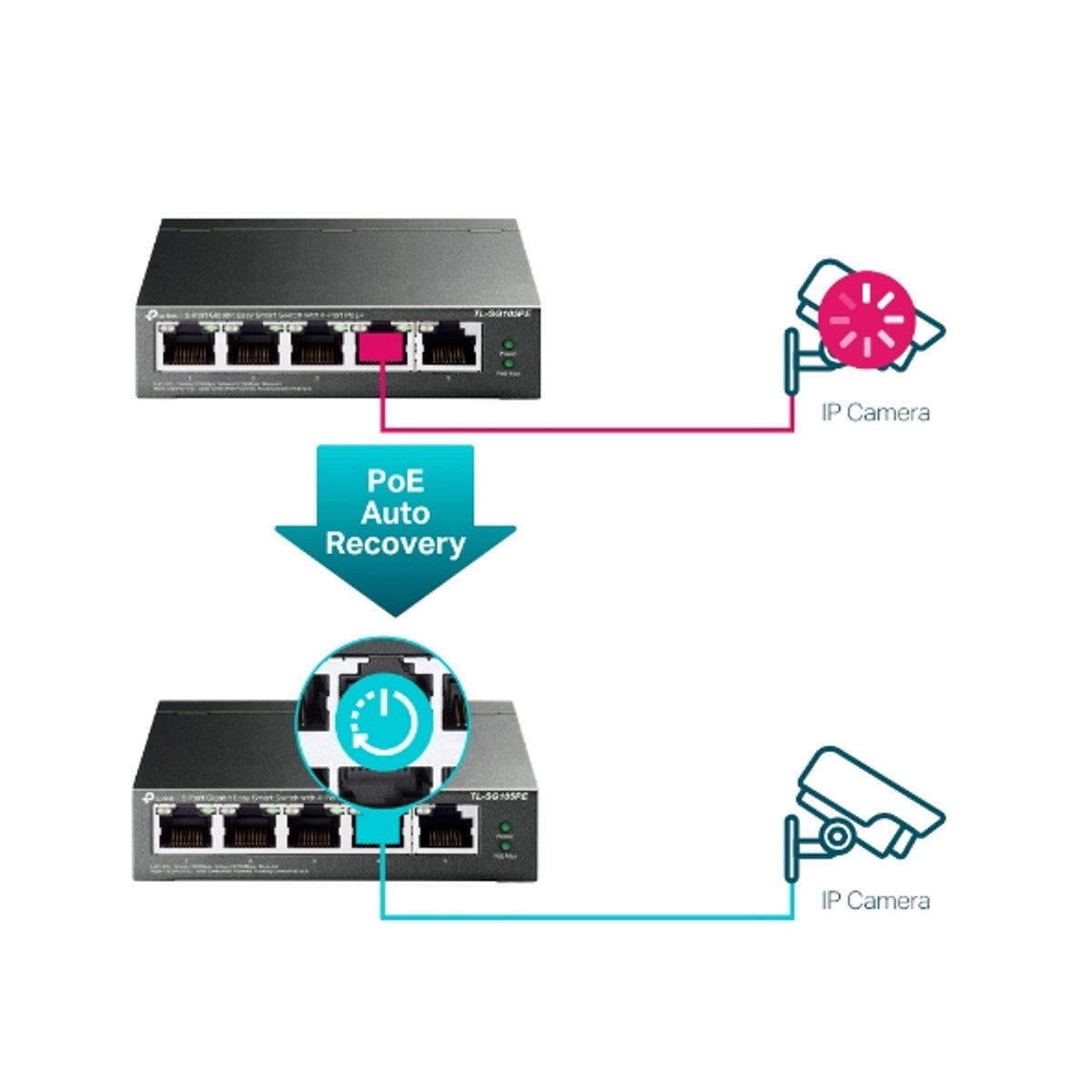

- Automatically recovers PoE devices via PoE Auto Recovery
- Simplifies configuration with a web-based user interface and Easy Smart Configuration Utility
- Offers plug-and-play connectivity for simple network set-up
Specifications
| General | |
|---|---|
| Brand | TP-LINK |
| SKU | TL-SG105PE |
| Warranty | 5-year manufacturer warranty |
| Total ports | 5 |
| Hardware | |
| Interface | Five 10/100/1000Mbps RJ45 ports |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Fan | Fanless |
| Dimensions | 196 mm length, 134 mm width, 122 mm height |
| Weight | 0.76 kg |
| PoE | |
| PoE ports | Port 1 to Port 4 |
| PoE standard | 802.3af/at compliant |
| Max power per port | 30 W |
| Total PoE power budget | 65 W |
| Performance | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Software | |
| Quality of Service | Port-Based, 802.1p, DSCP priority, 4 priority queues, Rate Limit, Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode |
| VLAN | Supports up to 32 VLANs simultaneously, MTU/Port/Tag VLAN |
| Power | |

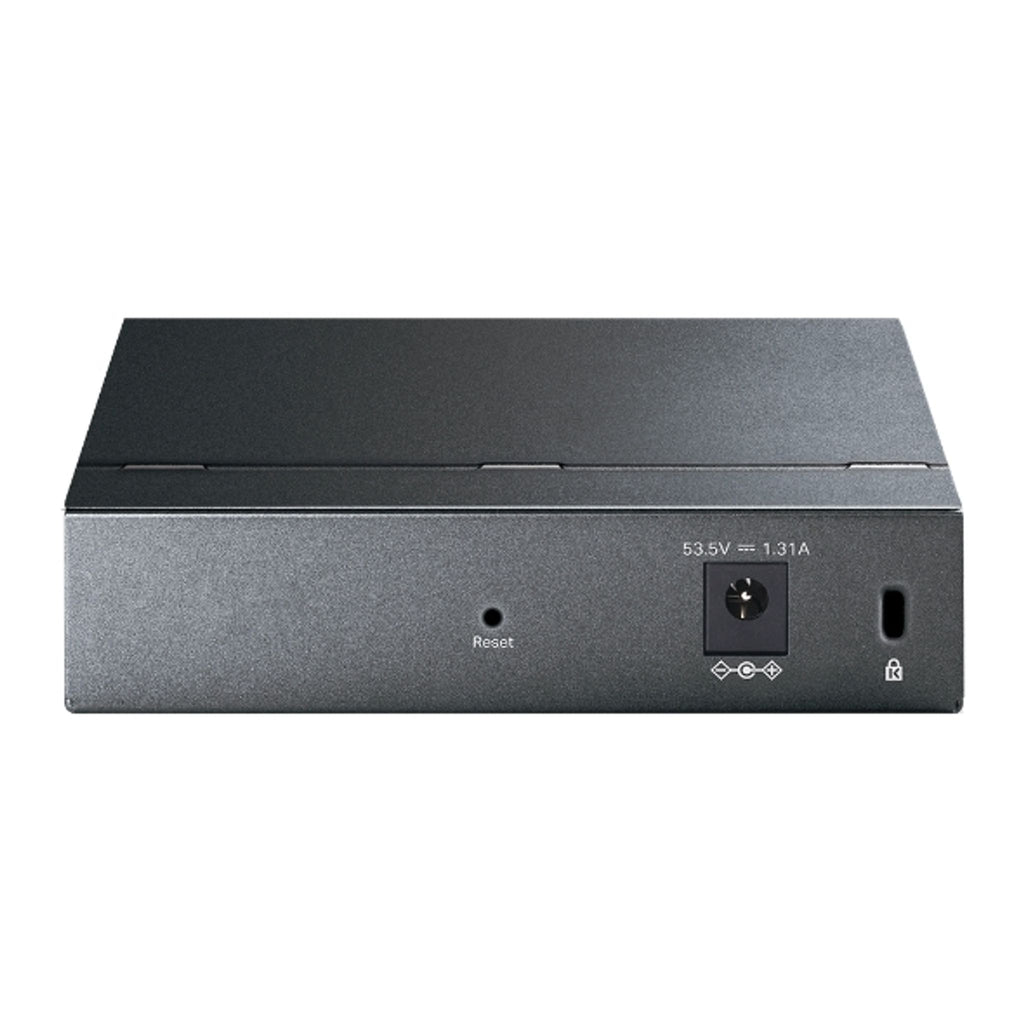

| Power supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| Max Power Consumption | 75.16 W (220V/50Hz with 65 W PD connected) |
Specifications come from the manufacturer and can change between production runs.
